Schneider Electric NSYMUPLA73G
Horizontal coupling kit for PLA enclosure H750xD320 mm - 15 mm - IP55 coupling
- MPN
- NSYMUPLA73G
- EAN
- 3606480774140
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMUPLA73G?

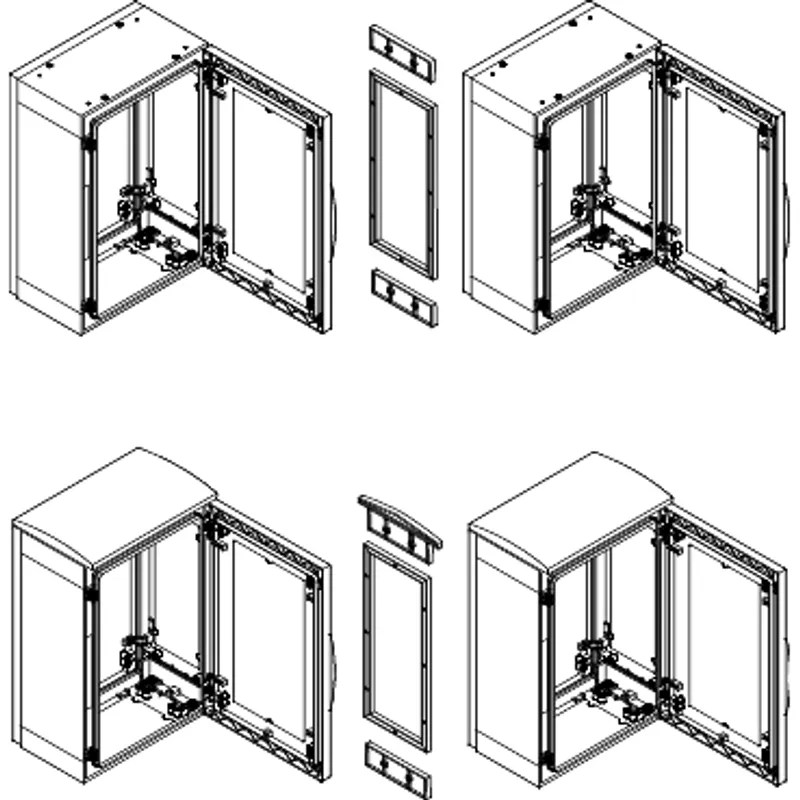

Coupling frame for PanelSeT PLA enclosures mounted on ZA plinth The frame is made from polyester The frame width is 15mm The nominal height is 750mm The depth is 320mm The coupling frame has a grey (RAL 7035) color Fixed on side coupling of 2 enclosures The kit is made of 1 frame and fixing elements Suitable for multi-purpose applications Ingress protection rating is IP55
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Coupling accessory |
| Product or component type | Coupling frame |
| Anwendung | Multi-purpose |
| Mounting location | Side coupling of 2 enclosures |
| Mounting support | ZA plinth |
| Range compatibility | PanelSeT PLA suitable enclosure |
| Device composition | 1 frame, fixing elements |
| Material | Frame: polyester |
| Height | Nominal: 750 mm |
| Width | Frame: 15 mm |
| Depth | 320 mm |
| IP degree of protection | IP55 |
| Colour | Grey (RAL 7035) |
Packaging
| Package 1 | 1 PCE, 60.500 cm × 36.500 cm × 3.000 cm (L × W × H), 860.000 g |
| Package 2 | 8 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 6.880 kg |
