Home / Schneider Electric / PanelSeT SM / Schneider Electric NSYMUC306
Schneider Electric

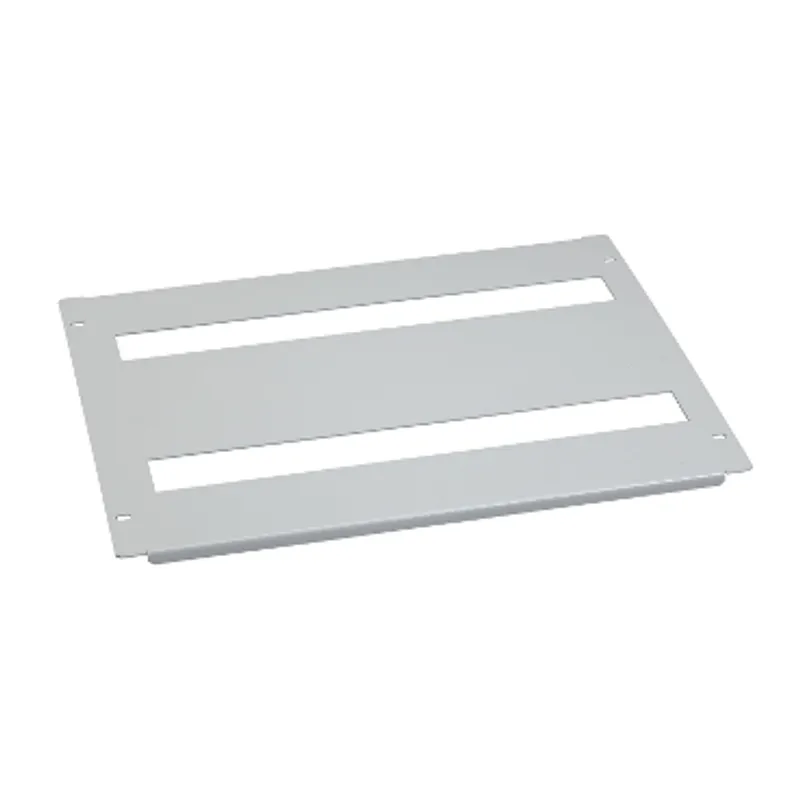

Schneider Electric NSYMUC306

Screwed-on cut-out cover plate;PanelSeT SFN;PanelSeT SF and SM;for electrical enclosure W600mm;2 cut outs;H300mm

MPN
NSYMUC306
EAN
3606480066498
Category
PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYMUC306?

This is a screwed-on cut-out cover plate for modular switchgear (1 module = 18 mm) suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is compatible with enclosures that have a width of 600mm. Suitable by modules of 150 or 200 mm. The nominal height and width are 300mm and 600mm respectively. The real height, width and depth are 502mm, 299.5mm and 12mm respectively. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 1 cut-out cover plate and fixing elements.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryEnclosure accessory
Product or component typeCover plate
AnwendungMulti-purpose
Range compatibilityPanelSeT SF, PanelSeT SM
Nominal dimensions of the housing- H: 300 mm W: 600 mm
Mounting locationOn chassis coupling set
Device compositionFixing elements, 1 cover plate
Quantity per setSet of 1
MaterialSteel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Fixing modeBy screws
Number of horizontal rows2
Total number of 18 mm modules48
Type of front plateWith cut-out
Number of cut-out2 cut-outs
HeightNominal: 300 mm, Real: 299.5 mm
WidthNominal: 600 mm, Fixing centers: 478 mm, Real: 502 mm
DepthReal : 12 mm

Packaging

Package 11 PCE, 2.000 cm × 31.000 cm × 52.000 cm (L × W × H), 2.032 kg
Package 2120 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 257.000 kg
