Schneider Electric NSYMPD88T

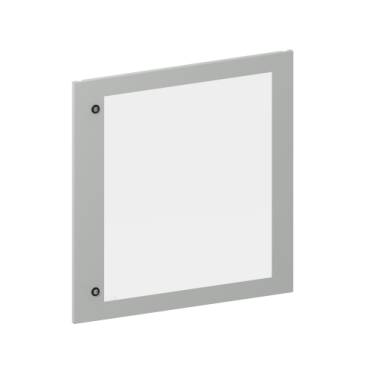

PanelSeT SF transparent door - 800x800 mm
- MPN
- NSYMPD88T
- EAN
- 3606480066221
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMPD88T?
External transparent door for PanelSeT SFM The product is to be mounted on front of the enclosure The nominal width is 800mm and real width is 769mm The nominal height is 800mm and real height is 794mm The door is made of Securit glass and sheet steel (RAL 7035) and has a degree of IP protection IP55 Hinges left or right (120 ° opening angle) The door has 2 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Partial door |
| Application | Compartmentalised application |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT SFM |
| Device composition | 2 escutcheon lock and 3 mm double bar insert, 1 partial door, 2 vertical reinforcement frame, 3 hinges |
| Quantity per set | Set of 1 |
| Material | Door: Securit glass, Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 2 |
| Door type | External transparent |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 800 mm, Real: 794 mm |
| Width | Nominal: 800 mm, Real: 769 mm |
Packaging
| Package 1 | 1 PCE, 80.000 cm × 78.000 cm × 7.000 cm (L × W × H), 9.160 kg |
| Package 2 | 6 P12, 120.000 cm × 80.000 cm × 55.000 cm (L × W × H), 67.800 kg |
