Schneider Electric NSYMPD66T
PanelSeT SF transparent door - 600x600 mm
- MPN
- NSYMPD66T
- EAN
- 3606480066191
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

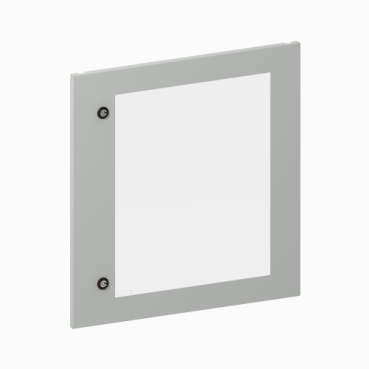

What is the Schneider Electric NSYMPD66T?
External transparent door for PanelSeT SFM The product is to be mounted on front of the enclosure The nominal width is 600mm and real width is 569mm The nominal height is 600mm and real height is 594mm The door is made of Securit glass and sheet steel (RAL 7035) Hinges left or right (120 ° opening angle) The door has 2 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Partial door |
| Application | Compartmentalised application |
| For enclosure nominal dimensions | - |
| Mounting location | Front |
| Range compatibility | PanelSeT SFM |
| Device composition | 2 escutcheon lock and 3 mm double bar insert, 1 partial door, 2 vertical reinforcement frame, 3 hinges |
| Quantity per set | Set of 1 |
| Material | Door: Securit glass, Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 2 |
| Door type | External transparent |
| Door opening side | Reversible (120 °) |
| Height | Nominal: 600 mm, Real: 594 mm |
| Width | Nominal: 600 mm, Real: 569 mm |
Packaging
| Package 1 | 1 PCE, 58.000 cm × 61.000 cm × 7.000 cm (L × W × H), 5.942 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 83.000 cm (L × W × H), 77.000 kg |
