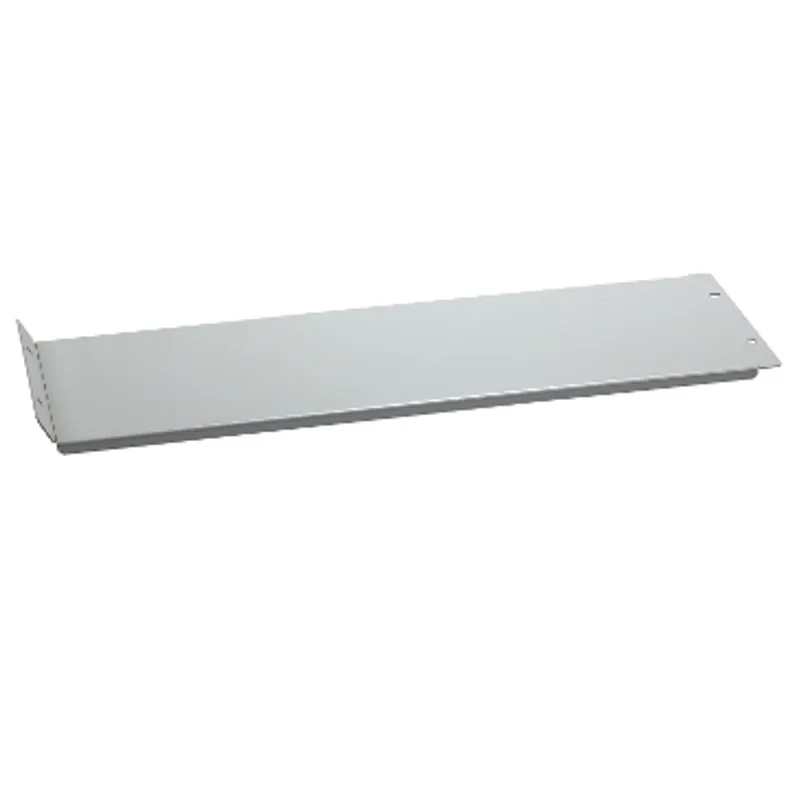

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W600mm steel;H200mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.79 kg |
Shipping & availability
When can NSYMPCH206 be shipped?
NSYMPCH206 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMPCH206 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMPCH206 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMPCH206, subject to availability and destination.
Hinged plain grey cover plate (RAL 7035) made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 600mm, fixing centers width is 478mm and real width is 502mm The nominal height is 200mm and real height is 199,5mm The real depth is 12mm Suitable for enclosures of 600 width 200mm The kit is made up of fixing elements, 1 cover plate and hinges
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Nominal dimensions of the housing | - H: 200 mm W: 600 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate, hinges |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Type of front plate | Hinged plain |
| Height | Nominal: 200 mm, Real: 199.5 mm |
| Width | Nominal: 600 mm, Fixing centers: 478 mm, Real: 502 mm |
| Depth | Real : 12 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 51.000 cm |
| Package 1 Width | 21.000 cm |
| Package 1 Length | 1.500 cm |
| Package 1 Weight | 1.790 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 90 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 174.000 kg |
| Warranty | 18 months |
