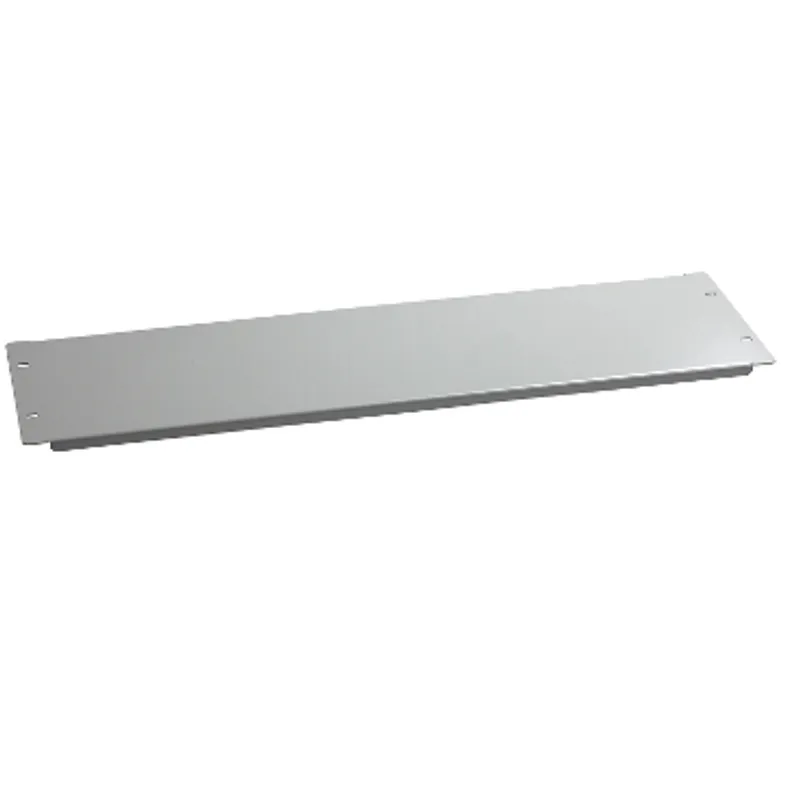

Schneider Electric NSYMPC206
Screwed-on plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm steel, H200mm
- MPN
- NSYMPC206
- EAN
- 3606480065873
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMPC206?
This is a screwed-on plain cover plate for protecting control devices suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is compatible with enclosures that have a width of 600mm. Suitable by modules of 150 or 200 mm. The nominal height and width are 200mm and 600mm respectively. The real height, width and depth are 502mm, 199.5mm and 12mm respectively. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 1 plain cover plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Nominal dimensions of the housing | - H: 200 mm W: 600 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Type of front plate | Plain |
| Height | Nominal: 200 mm, Real: 199.5 mm |
| Width | Nominal: 600 mm, Fixing centers: 478 mm, Real: 502 mm |
| Depth | Real : 12 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 1.500 cm × 20.000 cm × 50.500 cm (L × W × H), 1.737 kg |
| Package 2 | 200 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 359.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMPC206: frequently asked questions
When can NSYMPC206 be shipped?
NSYMPC206 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMPC206 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMPC206 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMPC206, subject to availability and destination.
