Schneider Electric NSYHLCR60

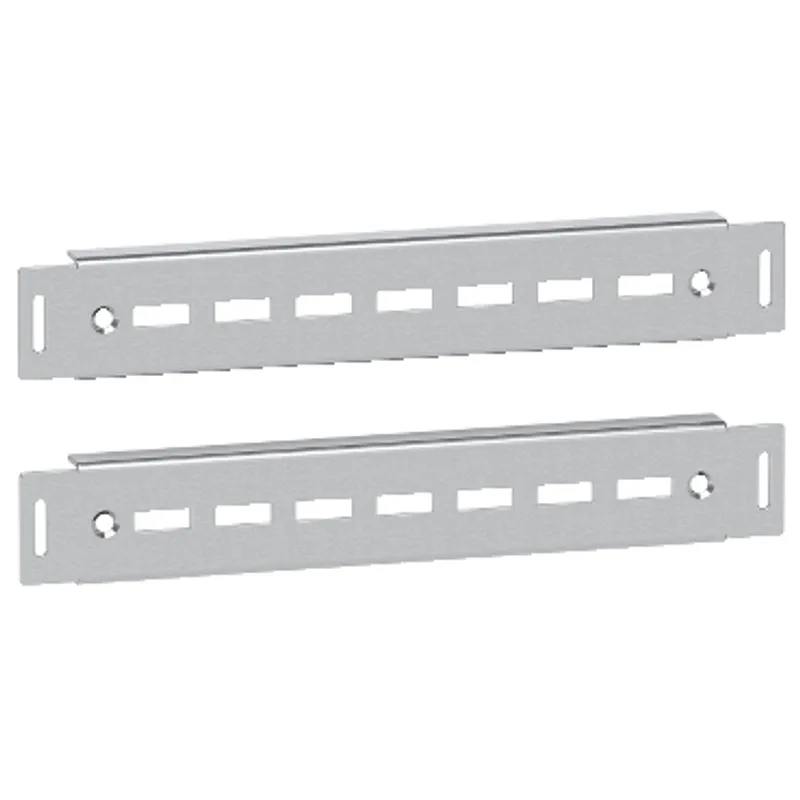

Heavy load cross rails, PanelSeT SFN, PanelSeT SF, W600mm, set of 2
- MPN
- NSYHLCR60
- EAN
- 3606480064579
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYHLCR60?
This is a cross-rail for heavy load suitable for PanelSeT SFN and PanelSeT SFN electrical enclosures. It is made of zinc coated steel. It is designed to be securely attached to the enclosure's structure, directly on the bottom frame. The rail thickness is 3mm. The nominal width is 600mm and the fixing centers width is 550mm. It is adjutable with a pitch of 25mm. The maximun load capacity is 500 Kg. The kit contains 2 cross-rails and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Product specific application | Heavy loading |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Rails for heavy load |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - D: 600 mm |
| Range compatibility | PanelSeT PanelSeT SF |
| Mounting location | On structure of enclosure |
| Mounting support | Bottom frame |
| Device composition | Fixing elements, 2 rails |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - screw type M6 |
| Adjustment | Adjustable with a pitch of 25 mm |
| Maximum load | 500 kg |
| Width | Fixing centers: 550 mm, Nominal: 600 mm |
| thickness | 3 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 59.000 cm × 13.000 cm × 4.000 cm (L × W × H), 3.146 kg |
| Package 2 | 40 P12, 120.000 cm × 80.000 cm × 41.000 cm (L × W × H), 150.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYHLCR60: frequently asked questions
When can NSYHLCR60 be shipped?
NSYHLCR60 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYHLCR60 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYHLCR60 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYHLCR60, subject to availability and destination.
