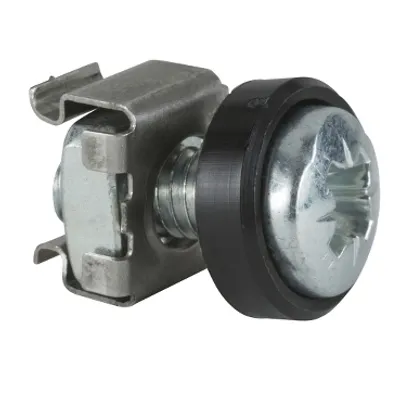

NSYGFR95M65Actassi - set of 50 screw M6 with washers and cage nuts for 9.5 mm square holes
Schneider Electric NSYHLCR50

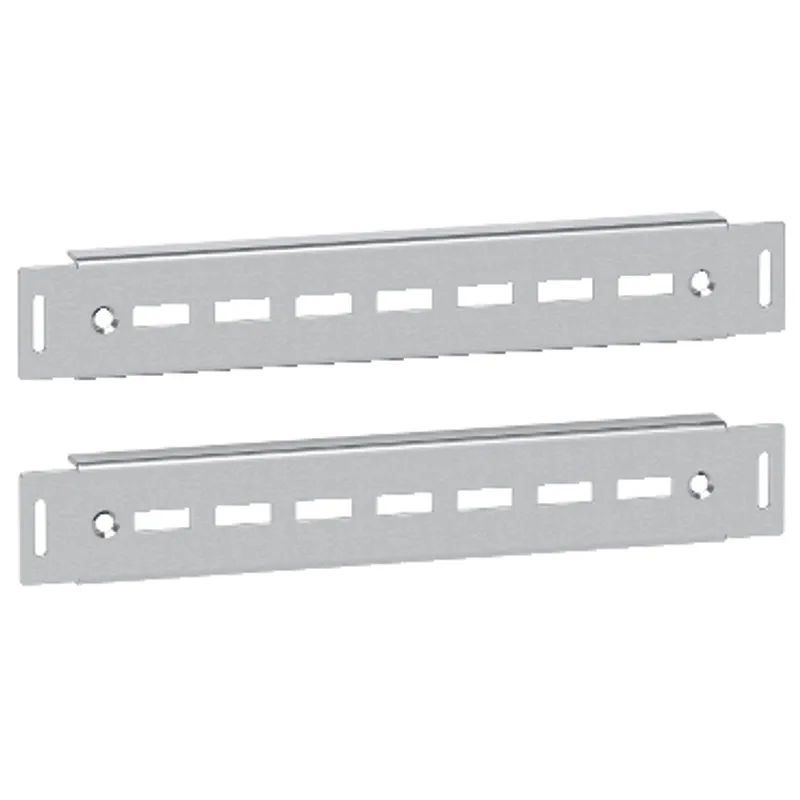

Heavy load cross rails, PanelSeT SFN, PanelSeT SF, W500mm, set of 2
- MPN
- NSYHLCR50
- EAN
- 3606480064562
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYHLCR50?
This is a cross-rail for heavy load suitable for PanelSeT SFN and PanelSeT SFN electrical enclosures. It is made of zinc coated steel. It is designed to be securely attached to the enclosure's structure, directly on the bottom frame. The rail thickness is 3mm. The nominal width is 500mm and the fixing centers width is 450mm. It is adjutable with a pitch of 25mm. The maximun load capacity is 525 Kg. The kit contains 2 cross-rails and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Product specific application | Heavy loading |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Rails for heavy load |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - D: 500 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SF 5G |
| Mounting location | On structure of enclosure |
| Mounting support | Bottom frame, Heavy load kit |
| Device composition | Fixing elements, 2 rails |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - screw type M6 |
| Adjustment | Adjustable with a pitch of 25 mm |
| Maximum load | 525 kg |
| Width | Fixing centers: 450 mm, Nominal: 500 mm |
| thickness | 3 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 48.000 cm × 12.000 cm × 4.000 cm (L × W × H), 2.600 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 52.000 kg |
