Schneider Electric NSYETF
Combined support bracket, PanelSeT SFN, PanelSeT SF, PanelSeT SM, steel , set of 10
- MPN
- NSYETF
- EAN
- 3606480064425
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYETF?

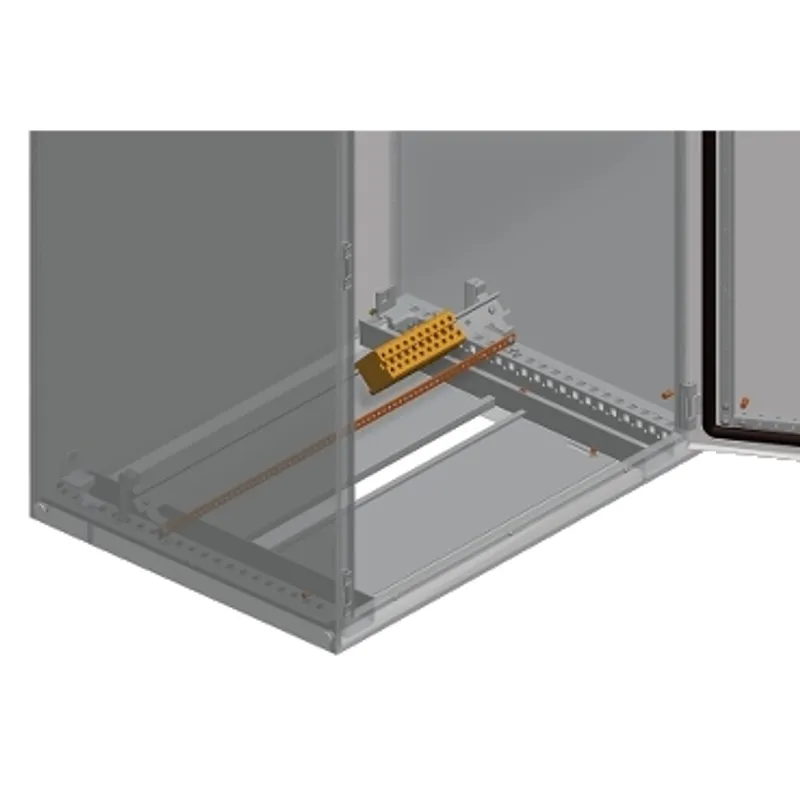

This is a combined support bracked suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It allows the installation of a DIN rail and an earthing strip on different planes to minimize the cable radiuses. The bracket is made of zinc-coated steel. The kit contains 10 comined brackets and fixing elements. For PanelSeT SFN and PanelSeT SF enclosures it could be installed directly on the structure and/or using mounting plates, in case of PanelSeT SM enclosures it could be intalled nn the bottom adjustment rails and/or on mounting plates.
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Support bracket |
| Mounting location | On structure of enclosure, On mounting plate |
| Mounting support | Earthing bar, DIN rail |
| Device composition | Fixing elements, 1 combined support brackets |
| Quantity per set | Set of 10 |
| Material | Zinc coated steel |
| Height | 86.5 mm |
| Width | 20 mm |
| Depth | 115 mm |
Packaging
| Package 1 | 1 PCE, 14.500 cm × 1.550 cm × 11.500 cm (L × W × H), 74.000 g |
| Package 2 | 10 BB1, 14.500 cm × 15.500 cm × 11.500 cm (L × W × H), 740.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYETF: frequently asked questions
When can NSYETF be shipped?
NSYETF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYETF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYETF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYETF, subject to availability and destination.
