Schneider Electric

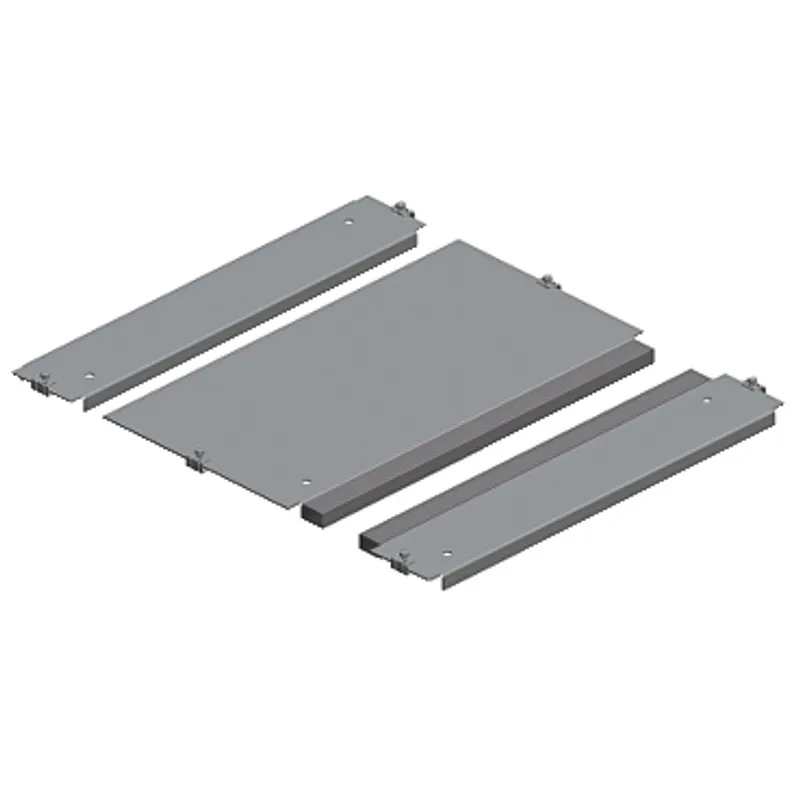

NSYEC841One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D400mm, fixed by clips
Schneider Electric NSYEC861
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D600mm, fixed by clips
- MPN
- NSYEC861
- EAN
- 3606485126302
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC861?
This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 800 and 600 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Electronic application, Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SFM SFM |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 30 mm |
| Width | Nominal: 800 mm, Useful: 616 mm |
| Depth | Nominal : 600 mm, Real : 650 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 65.000 cm × 34.500 cm × 3.000 cm (L × W × H), 4.600 kg |
| Package 2 | 30 P12, 120.000 cm × 80.000 cm × 58.000 cm (L × W × H), 149.000 kg |
