Schneider Electric NSYEC841
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800 D400mm, fixed by clips
- MPN
- NSYEC841
- EAN
- 3606485126289
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

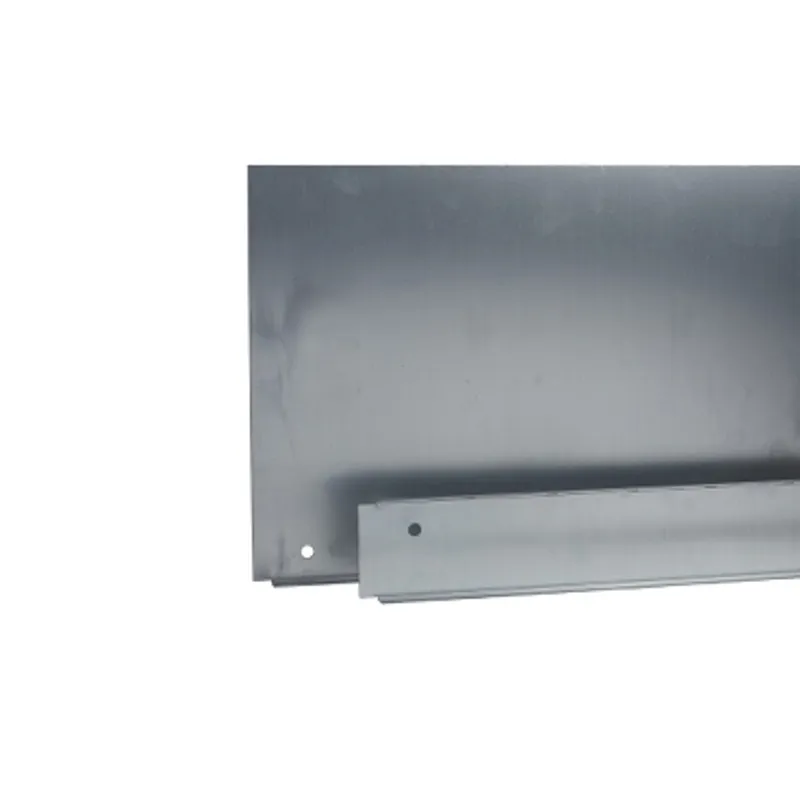

What is the Schneider Electric NSYEC841?
This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 800 and 400 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 30 mm |
| Width | Nominal: 800 mm, Useful: 616 mm, Real: 650 mm |
| Depth | Nominal : 400 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 65.500 cm × 15.000 cm × 3.000 cm (L × W × H), 2.900 kg |
| Package 2 | 50 P12, 120.000 cm × 80.000 cm × 40.000 cm (L × W × H), 155.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC841: frequently asked questions
When can NSYEC841 be shipped?
NSYEC841 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC841 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC841 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC841, subject to availability and destination.
