Schneider Electric NSYEC165
Plain cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1600 D500mm, fixed by clips
- MPN
- NSYEC165
- EAN
- 3606485126166
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC165?

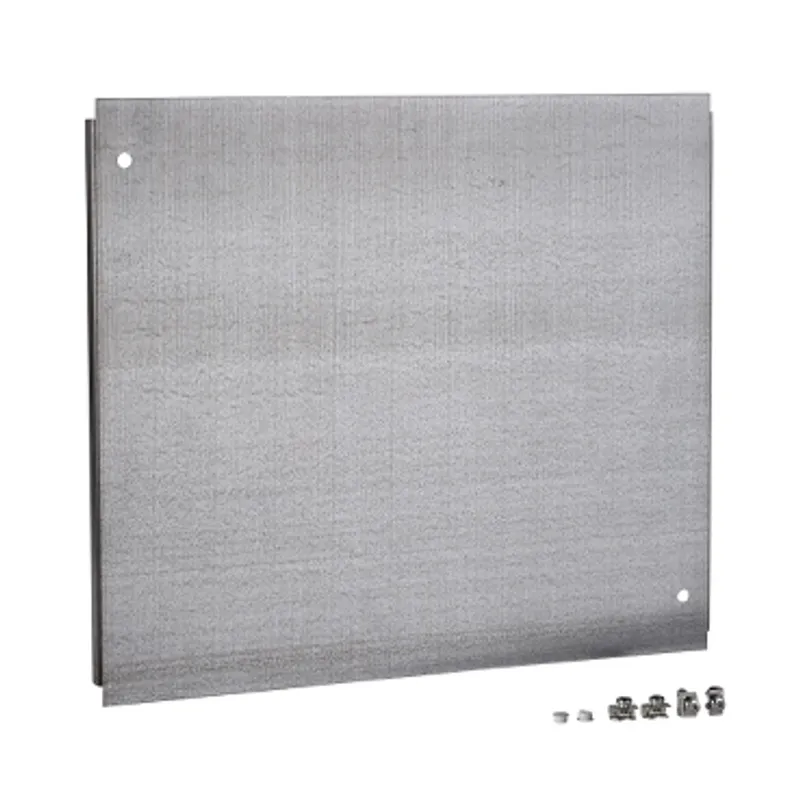

This is a multi-purpose plain cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 1600 and 500 mm respectively. The set contains one plate with and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | Plain |
| Device composition | Fixing elements, 1 plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 25 mm |
| Width | Nominal: 1600 mm, Useful: 1416 mm |
| Depth | Nominal : 500 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 72.500 cm × 41.700 cm × 2.500 cm (L × W × H), 7.540 kg |
| Package 2 | 25 P12, 120.000 cm × 80.000 cm × 53.000 cm (L × W × H), 202.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC165: frequently asked questions
When can NSYEC165 be shipped?
NSYEC165 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC165 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC165 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC165, subject to availability and destination.
