NSYEC1261One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1200 D600mm, fixed by clips
Schneider Electric NSYEC1282
Two entries cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1200 D800mm, fixed by clips
- MPN
- NSYEC1282
- EAN
- 3606485126524
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYEC1282 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC1282?

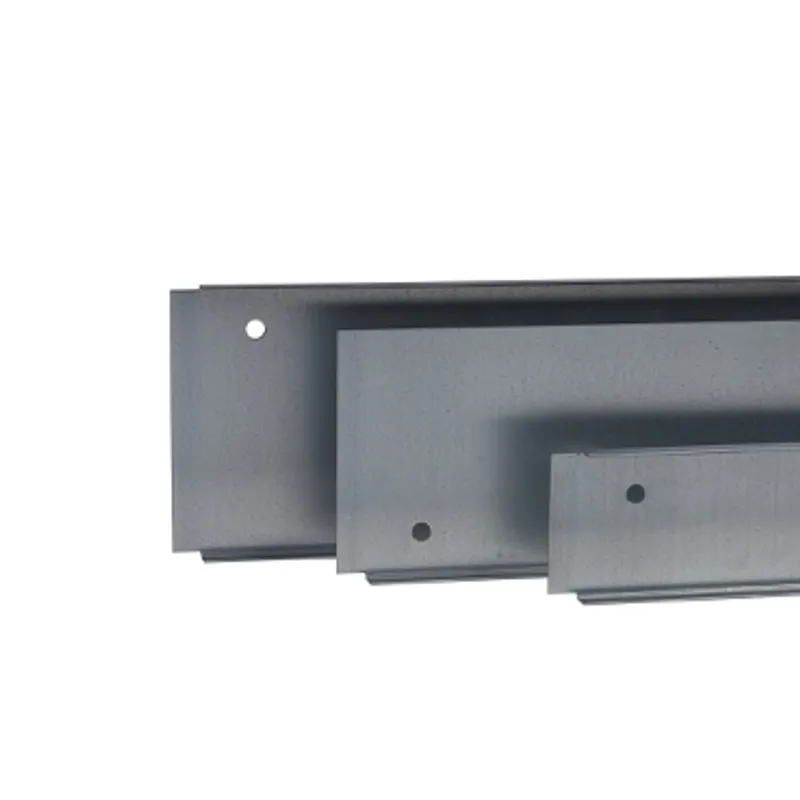

Spacial SF 2 entries cable gland plate. 1200 x 800 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 2 cable entries. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 2 entries |
| Device composition | Fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Width | Nominal: 1200 mm, Useful: 1016 mm |
| Depth | Nominal : 800 mm, Real : 710 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 52.000 cm × 40.000 cm × 3.500 cm (L × W × H), 9.670 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 58.000 cm (L × W × H), 302.000 kg |
