Schneider Electric NSYEB2025D8
Earth braids section 25mm², length 200mm, eyelet hole 8.5 mm. Packaging unit: 10.
- MPN
- NSYEB2025D8
- EAN
- 3606480064067
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

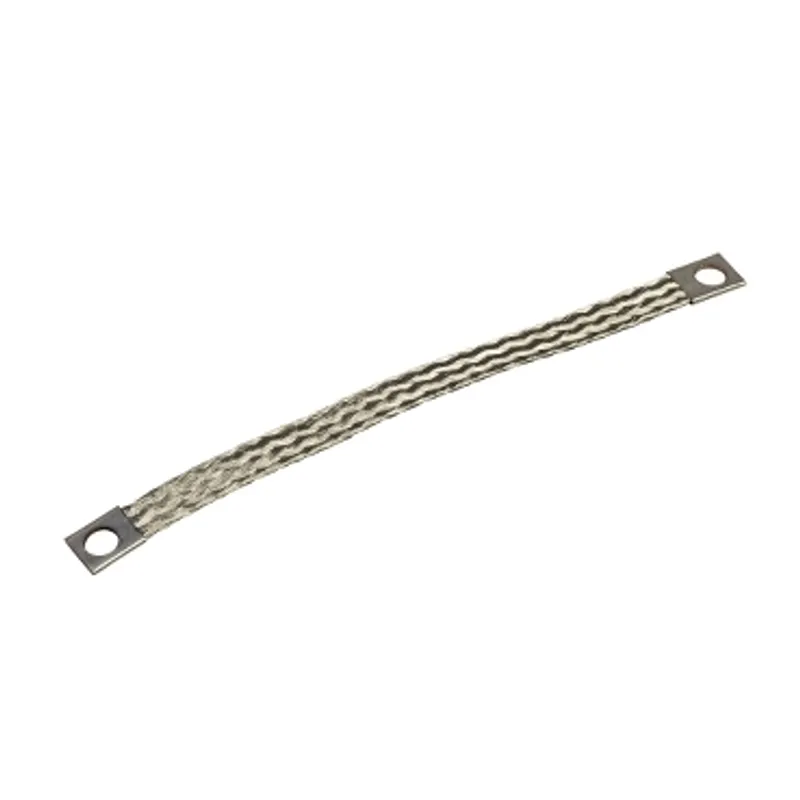

What is the Schneider Electric NSYEB2025D8?
This is a set of earthing braids designed for use in electrical enclosures to ensure a reliable earth connection for high frequencies, thereby preventing the interference caused by stray electric currents. It is made of tinned copper. This set includes 10 earth braids. Its lenght is 200 mm, its section is 25 mm2 and it has a terminal diameter of 8.5 mm.
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Earthing braid |
| Device composition | 1 braid |
| Quantity per set | Set of 10 |
| Material | Tinned copper |
| Fixing mode | Nut and washer - on earth connection location |
| Length | 200 mm |
| Width | 27 mm |
| Nominal cross section | 25 mm² |
| Diameter | 8.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 22.500 cm × 2.000 cm × 0.500 cm (L × W × H), 56.000 g |
| Package 2 | 10 BB1, 26.000 cm × 12.000 cm × 1.500 cm (L × W × H), 560.000 g |
