Schneider Electric NSYDLPLM18G
Modular dist chassis 18 modules of 18mm w/ insulating prot.plate for PLM3025
- MPN
- NSYDLPLM18G
- EAN
- 3606480773969
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLPLM18G?

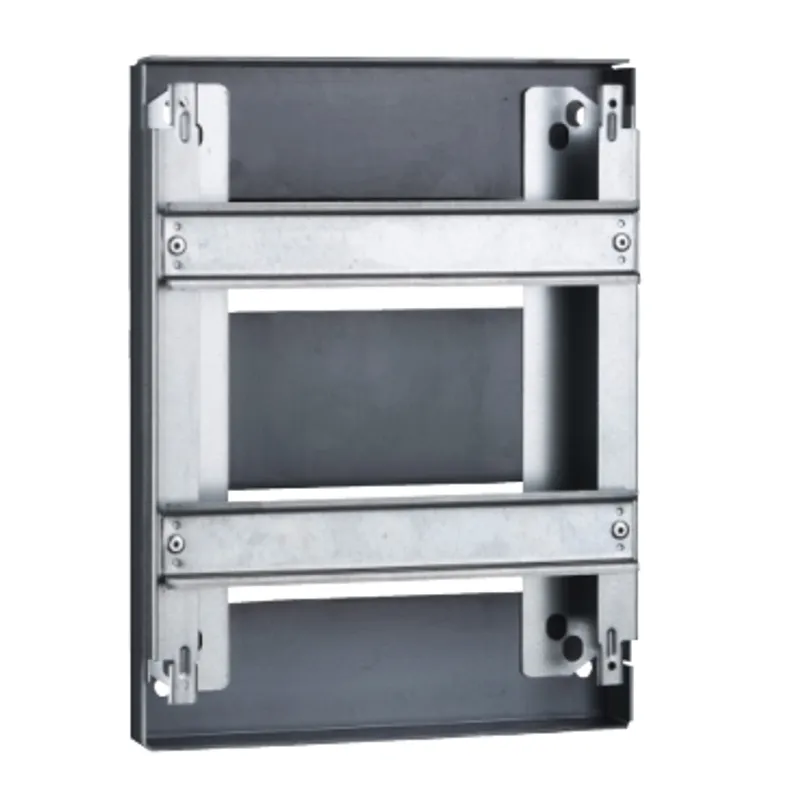

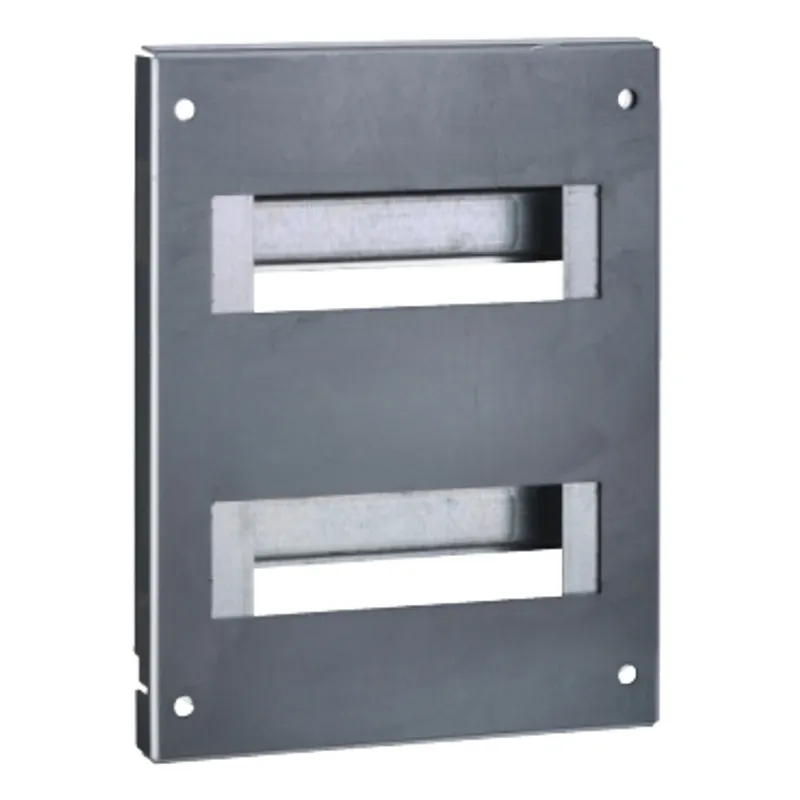

DL chassis for PanelSeT PLM and PanelSeT PHD enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 255mm The height is 308mm The depth is 160mm Number of 18mm modules is 18 (1 module = 2 steps = 18 mm) Number of horizontal rows is 2 The front panel is made from self-extinguishing and rails is made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 2 The kit is made up of 1 chassis structure, 1 front panel and 2 35mm DIN rails IP2x not respected when chassis is mounted at 67mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DL |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLM, PanelSeT PHD |
| Device composition | 1 chassis structure, 1 front panel, 2 35 mm DIN rail |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing, Rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Number of horizontal rows | 2 |
| Total number of 18 mm modules | 18 |
| Type of front plate | Cut-out plate |
| Number of cut-out | 2 cut-outs |
| Height | 308 mm |
| Width | 255 mm |
| Depth | 160 mm |
Packaging
| Package 1 | 1 PCE, 30.500 cm × 22.500 cm × 5.000 cm (L × W × H), 928.000 g |
| Package 2 | 20 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 18.560 kg |
