DLP modular dist chassis 57modules(18mm) insulating material for PLA H750xW500
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 5.11 kg |
Shipping & availability
When can NSYDLP57G be shipped?
NSYDLP57G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLP57G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLP57G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLP57G, subject to availability and destination.
Schneider Electric DLP modular dist chassis 57modules(18mm) insulating material for PLA H750xW500, manufacturer part number NSYDLP57G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DLP |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLA, PanelSeT PHD |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail, 1 plain front panel |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing, Chassis structure and rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 3 |
| Total number of 18 mm modules | 57 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 750 mm |
| Width | 500 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 42.100 cm |
| Package 1 Length | 68.200 cm |
| Package 1 Weight | 5.108 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 90.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 88.500 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestDLP modular dist chassis 198modules(18mm) insulating material for PLA H1250xW750
Available on requestDLP modular dist chassis 231modules(18mm) insulating material for PLA H1250xW750
Available on requestDLP modular dist chassis 264modules(18mm) insulating material for PLA H1500xW750
Available on requestDLP modular dist chassis 297modules(18mm) insulating material for PLA H1500xW750
Available on requestDLP modular dist chassis 76modules(18mm) insulating material for PLA H750xW500
Available on requestDLP modular dist chassis 95modules(18mm) insulating material for PLA H1000xW500
Available on requestDLP modular dist chassis 99modules(18mm) insulating material for PLA H750xW750

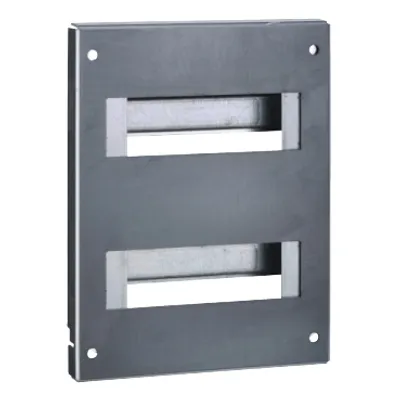

Available on requestmodular dist chassis 18 modules of 18mm w/ insulating prot.plate for PLM3025
