DLP modular dist chassis 133modules(18mm) insulating material for PLA H1250xW500
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 7.16 kg |
Shipping & availability
When can NSYDLP133G be shipped?
NSYDLP133G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLP133G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLP133G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLP133G, subject to availability and destination.
Schneider Electric DLP modular dist chassis 133modules(18mm) insulating material for PLA H1250xW500, manufacturer part number NSYDLP133G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLP |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLA, PanelSeT PHD |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 7 front panels with 35 mm DIN rail |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing, Chassis structure and rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 7 |
| Total number of 18 mm modules | 133 |
| Type of front plate | Cut-out plate |
| Number of cut-out | 7 cut-outs |
| Height | 1250 mm |
| Width | 500 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.500 cm |
| Package 1 Width | 43.500 cm |
| Package 1 Length | 117.500 cm |
| Package 1 Weight | 7.164 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 97.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 99.000 kg |
| Warranty | 18 months |
More Schneider Electric parts

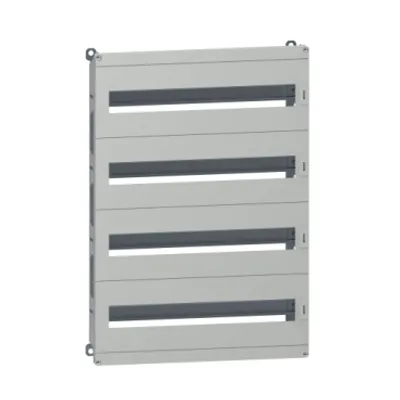

Available on requestModular chassis DLM type for PanelSeT WM enclosure, 88 modules, H700xW500mm.
