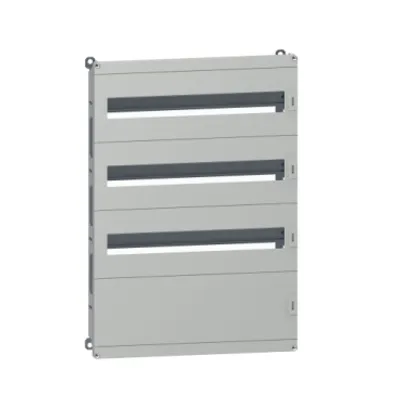

NSYDLM66Modular chassis DLM type for PanelSeT WM enclosure, 66 modules, H700xW500mm.
Schneider Electric NSYDLP114G
DLP modular dist chassis 114modules(18mm) insulating material for PLA H1000xW500
- MPN
- NSYDLP114G
- EAN
- 3606480773884
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYDLP114G (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLP114G?
DLP chassis for PanelSeT PLA and PanelSeT PHD enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 500mm The height is 1000mm Number of 18mm modules is 114 (1 module = 2 steps = 18 mm) Number of horizontal rows is 6 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 6 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 6 front panels with 35mm DIN rails IP2x not respected when chassis is mounted at 67mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLP |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLA, PanelSeT PHD |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 6 front panels with 35 mm DIN rail |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing, Chassis structure and rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 6 |
| Total number of 18 mm modules | 114 |
| Type of front plate | Cut-out plate |
| Number of cut-out | 6 cut-outs |
| Height | 1000 mm |
| Width | 500 mm |
Packaging
| Package 1 | 1 PCE, 92.500 cm × 43.000 cm × 14.500 cm (L × W × H), 5.728 kg |
| Package 2 | 14 PAM, 120.000 cm × 100.000 cm × 118.000 cm (L × W × H), 93.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDLP114G: frequently asked questions
Can I still buy the NSYDLP114G now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYDLP114G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYDLP114G be shipped?
NSYDLP114G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLP114G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLP114G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLP114G, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYDLM84Modular chassis DLM type for PanelSeT WM enclosure, 84 modules, H800xW600mm.
Schneider Electric

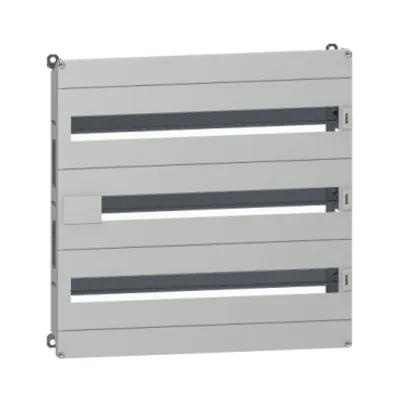

NSYDLM84PModular chassis DLM type for PanelSeT WM enclosure, 84 modules, H600xW600mm.
