Schneider Electric NSYDLM48

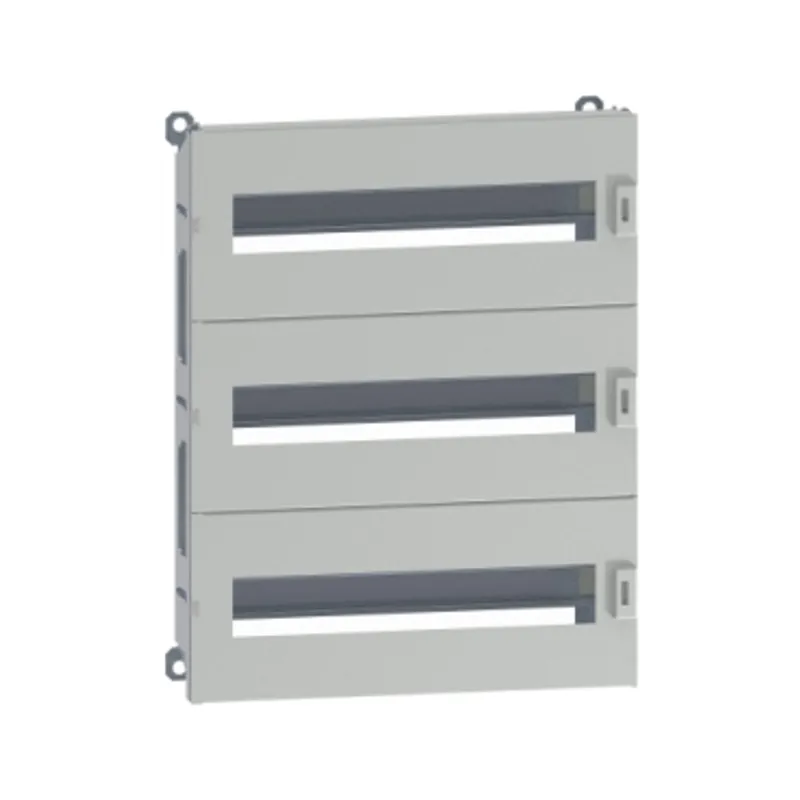

Modular chassis DLM type for PanelSeT WM enclosure, 48 modules, H500xW400mm.
- MPN
- NSYDLM48
- EAN
- 3606480162527
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLM48?
DLM chassis for PanelSeT S3D, PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on step slide and front of enclosure by fixing elements and back with supports location The width is 355mm The height is 453mm The depth is 101,5mm Number of 18mm modules is 48 (1 module = 2 steps = 18 mm) Number of horizontal rows is 3 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 3 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 3 front panels with 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLM |
| For enclosure nominal dimensions | - |
| Mounting location | Step slide, Front of enclosure |
| Range compatibility | PanelSeT S3D, PanelSeT CRN |
| Device composition | 1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on front and back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 3 |
| Total number of 18 mm modules | 48 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 453 mm |
| Width | 355 mm |
| Depth | 101.5 mm |
Packaging
| Package 1 | 1 PCE, 47.000 cm × 38.000 cm × 12.000 cm (L × W × H), 3.544 kg |
| Package 2 | 48 PAM, 120.000 cm × 100.000 cm × 118.000 cm (L × W × H), 185.000 kg |
