Schneider Electric NSYDLM240

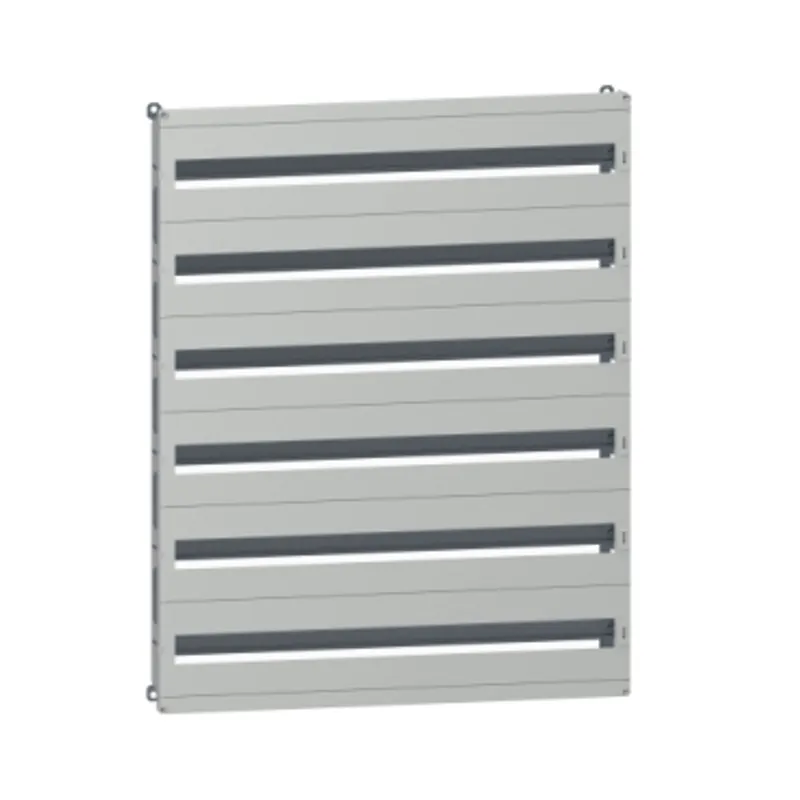

Modular chassis DLM type for PanelSeT WM enclosure, 234 modules, H1000xW800mm.
- MPN
- NSYDLM240
- EAN
- 3606480162602
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLM240?
DLM chassis for PanelSeT S3D, PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure and step slide by fixing elements and back with supports location The width is 755mm The height is 953mm The depth is 101,5mm Number of 18mm modules is 240 (1 module = 2 steps = 18 mm) Number of horizontal rows is 6 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 6 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 6 front panels with 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLM |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure, Step slide |
| Range compatibility | PanelSeT S3D, PanelSeT CRN |
| Device composition | 1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 6 front panels with 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on front and back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 6 |
| Total number of 18 mm modules | 240 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 6 cut-outs |
| Height | 953 mm |
| Width | 755 mm |
| Depth | 101.5 mm |
Packaging
| Package 1 | 1 PCE, 97.000 cm × 77.000 cm × 12.000 cm (L × W × H), 12.650 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 151.000 cm (L × W × H), 140.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYDLM240: frequently asked questions
When can NSYDLM240 be shipped?
NSYDLM240 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLM240 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLM240 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLM240, subject to availability and destination.
