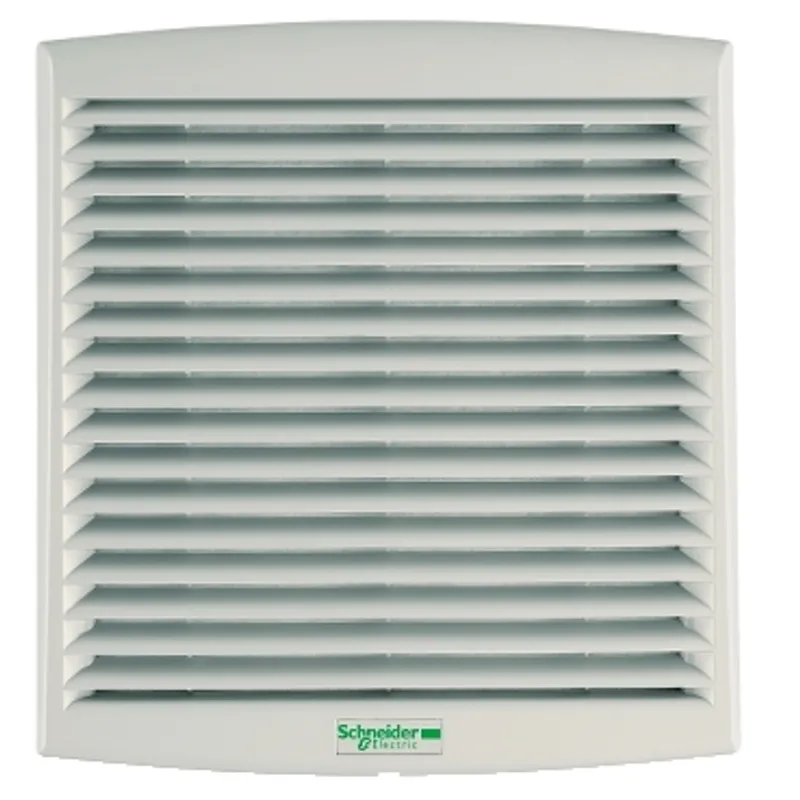

ClimaSys forced vent. IP54, 44m3/h, 48V DC, with outlet grille and filter G2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.23 kg |
Shipping & availability
When can NSYCVF38M48DPF be shipped?
NSYCVF38M48DPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF38M48DPF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF38M48DPF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF38M48DPF, subject to availability and destination.
Schneider Electric ClimaSys forced vent. IP54, 44m3/h, 48V DC, with outlet grille and filter G2, manufacturer part number NSYCVF38M48DPF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Type of filter | Standard |
| Flow rate | Free flow rate with standard filter: 44 m3/h |
| [Us] rated supply voltage | 36...56 V |
| Input voltage | 48 V DC |
| Absorbed power | 3.6 W |
| [In] rated current | 0.07 A |
| Noise level < at | 40…41 dB |
| Bearing type | Ball |
| Height | External: 137 mm |
| Width | External: 117 mm |
| Depth | External : 49 mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 0.23 kg |
| Material | Outlet grille: injected thermoplastic (ASA PC) |
| Colour | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation | -10…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Maximum pressure | 29 Pa flow rate 0 m³/h |
| Connections - terminals | Cable |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template |
| Condition of use | Outside temperature must be 5 °C lower than inside temperature, Surrounding environment must be relatively clean, Overfrequent filter replacement should be avoided, Flow rates depends on the work point, see ProClima software, Filter must be cleaned and replaced regularly |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 14.700 cm |
| Package 1 Weight | 280.000 g |
| Warranty (in months) | 18 |
