Retrofit kit for CU Slim Stainless steel 1,1 - 1,5kW to Connected Cooling Unit, Climasys CU, semi-flush mounted

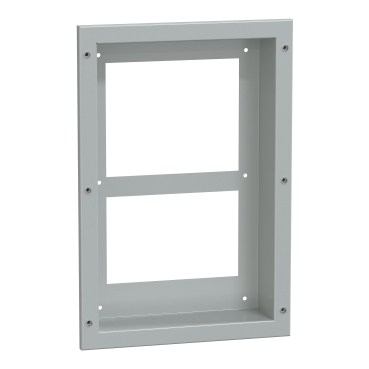

Half flush mounting kit for Side Connected Cooling Unit, Climasys CU, 350 - 600W
This Accessory is a Half flush mounting kit for Side Connected Cooling Unit. It's made with galvanized steel and its color is Grey RAL 7035. Its dimensions (HxWxD) are 522x352x91mm. Its IP index is IP55.
| Range of product | ClimaSys |
| Product name | CU |
| Product or component type | Mounting adaptor |
| Product destination | Mounting adaptor for side cooling unit 350 W, Side cooling unit 650 W |
| Offer type | Complementary |
| Mounting location | Door of enclosure, Side of enclosure |
| fixing mode | By bolt |
| Device composition | 1 mounting adaptor: inside the enclosure, 1 gasket: inside the enclosure, 6 bolt: outside |
| Material | Galvanized steel |
| Colour | Grey (RAL 7035) |
| Height | 522 mm |
| Width | 352 mm |
| Depth | 91 mm |
| Quantity per set | 1 |
| IP degree of protection | IP55 |
| Package 1 | 1 PCE, 54.000 cm × 38.000 cm × 12.000 cm (L × W × H), 4.000 kg |
| Package 2 | 8 P12, 120.000 cm × 80.000 cm × 37.000 cm (L × W × H), 50.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
NSYCUACC034DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYCUACC034DG and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCUACC034DG, subject to availability and destination.
