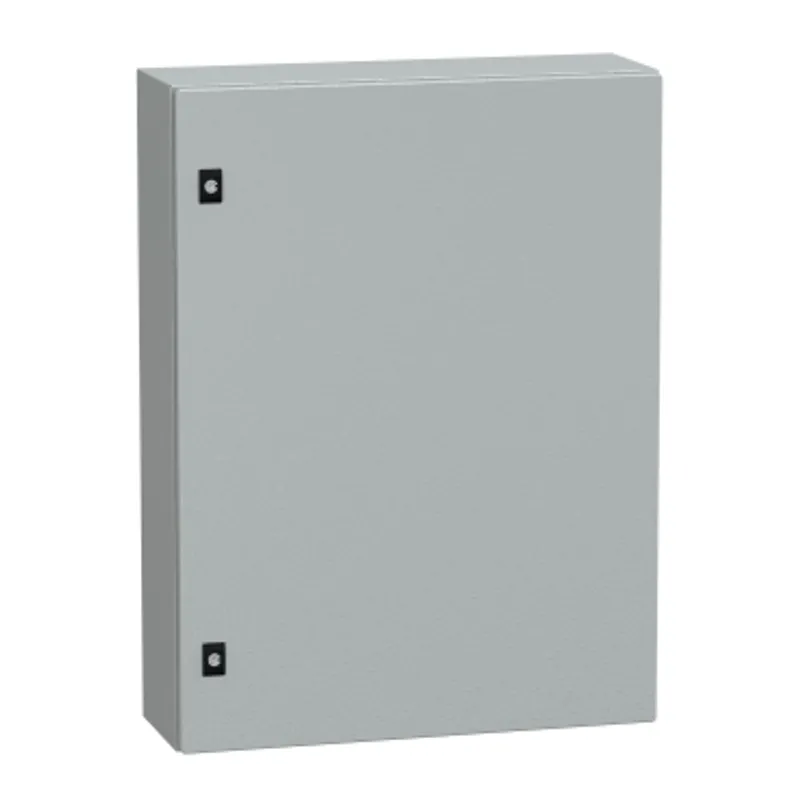

Schneider Electric NSYCRN86200P

PanelSeT CRN plain door with mount.plate. H800xW600xD200 IP66 IK10 RAL7035..

MPN
NSYCRN86200P
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN86200P?

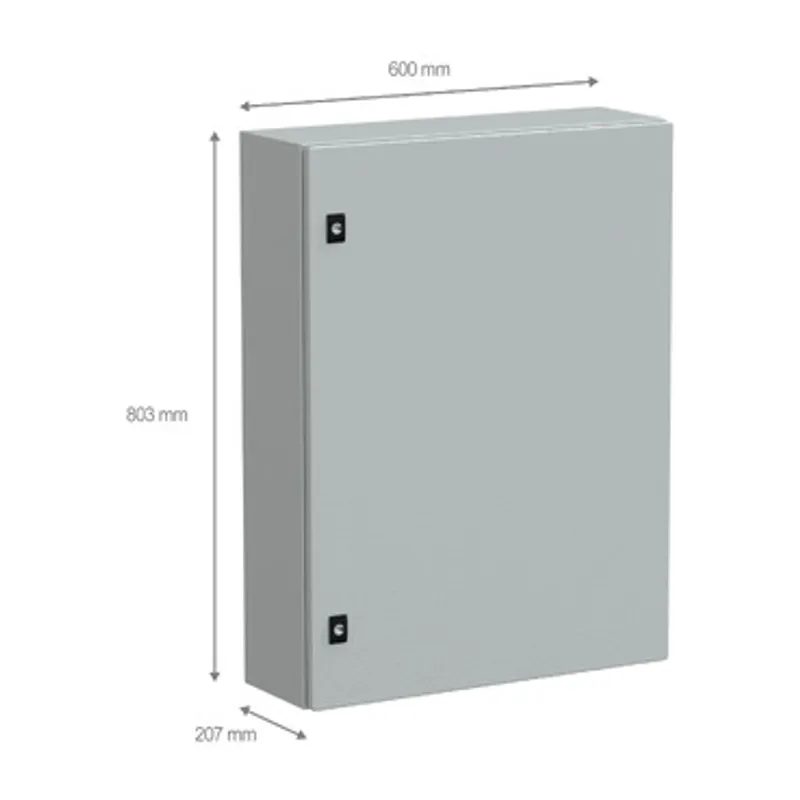

Spacial CRN steel wall-mounting enclosure for multi-purpose applications This enclosure is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) It has a nominal height, width, and depth of 800mm, 600mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, a cable gland plate, a plain door with a lock, and a galvanised steel mounting plate It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 26,13kg It is certified by UL, cUL, and DNV-GL The sides of the enclosure are made from a single folded section, while the back is welded with a double profile to form a protected sealed area

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height800 mm
Enclosure nominal width600 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door typePlain
Mounting plate descriptionPlain
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight26.13 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 81.000 cm × 61.500 cm × 22.000 cm (L × W × H), 26.130 kg
Package 210 PAM, 120.000 cm × 100.000 cm × 136.000 cm (L × W × H), 271.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN86200P: frequently asked questions

When can NSYCRN86200P be shipped?

NSYCRN86200P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN86200P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN86200P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN86200P, subject to availability and destination.

More Schneider Electric parts

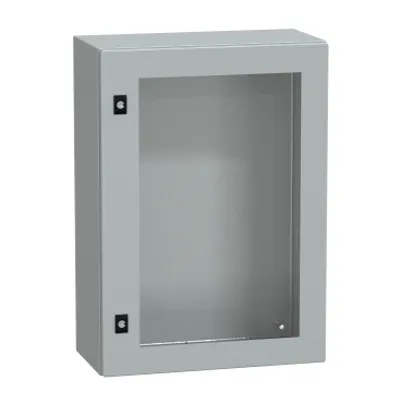

Schneider Electric NSYCRN75250T – PanelSeT CRN tspt door w/o mount.plate. H700xW500xD250 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN75250T

PanelSeT CRN tspt door w/o mount.plate. H700xW500xD250 IP66 IK08 RAL7035..

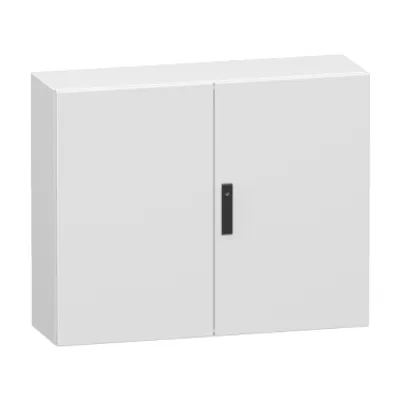

Schneider Electric NSYCRN810300D – Double plain steel door, PanelSeT CRN, without mounting plate, 800x1000x300mm, IP55, IK10, RAL7035
