Schneider Electric NSYCRN86200

PanelSeT CRN plain door w/o mount.plate. H800xW600xD200 IP66 IK10 RAL7035..

MPN
NSYCRN86200
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN86200?

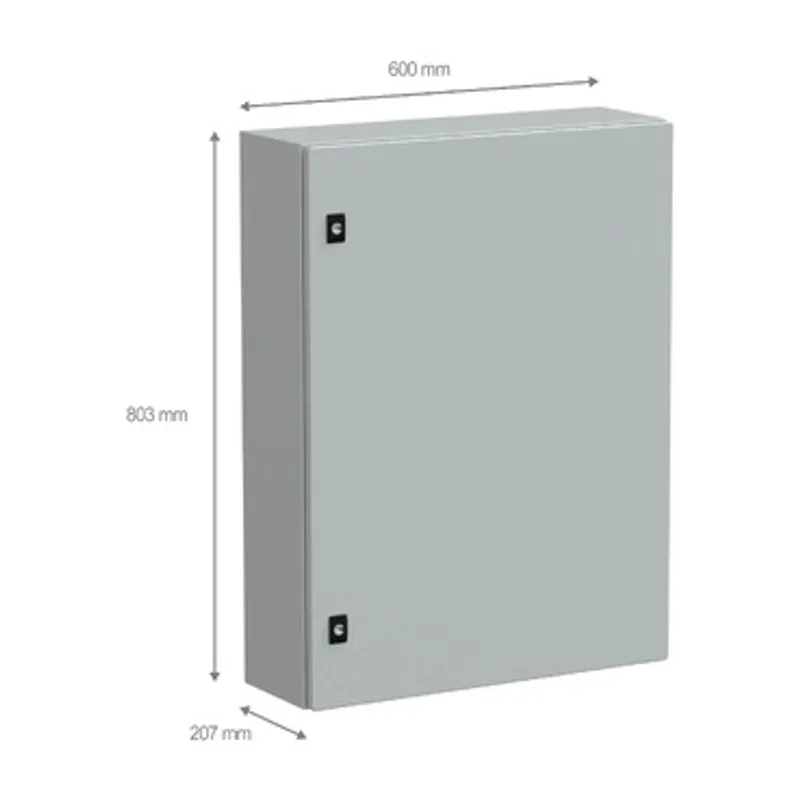

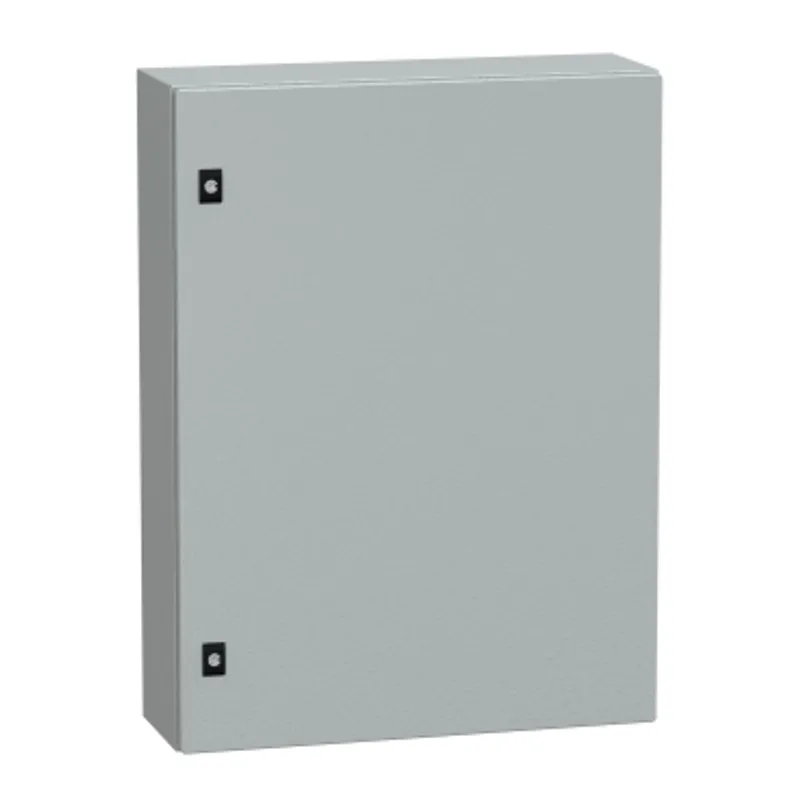

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 800 mm x (D) 200 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height800 mm
Enclosure nominal width600 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight18.138 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 81.000 cm × 61.000 cm × 21.500 cm (L × W × H), 18.138 kg
Package 215 PAM, 120.000 cm × 100.000 cm × 196.000 cm (L × W × H), 286.000 kg
