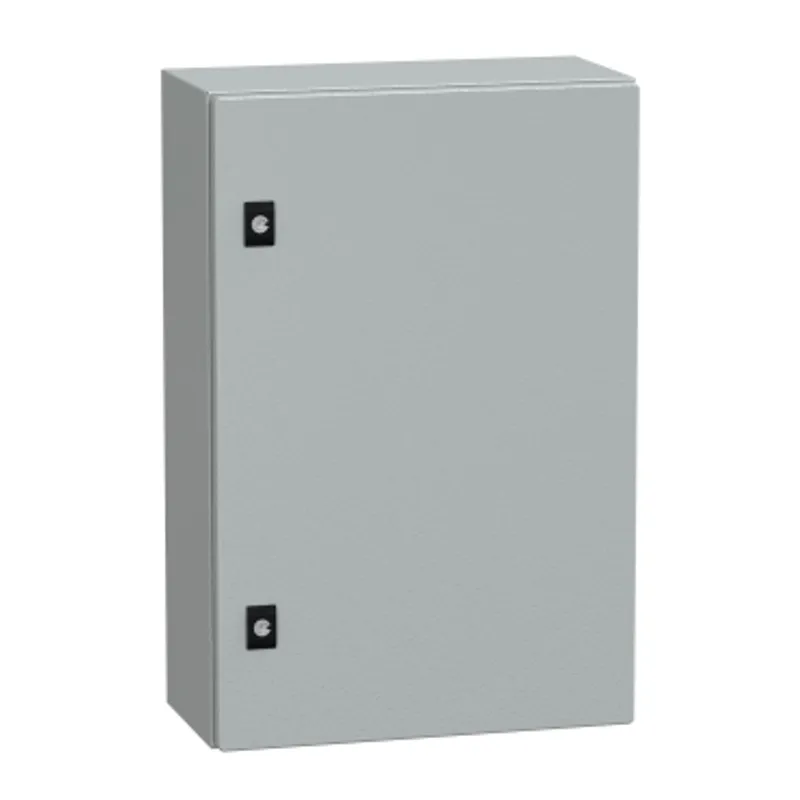

Schneider Electric NSYCRN64200

PanelSeT CRN plain door w/o mount.plate. H600xW400xD200 IP66 IK10 RAL7035..

MPN
NSYCRN64200
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN64200?

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 9,83kg

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

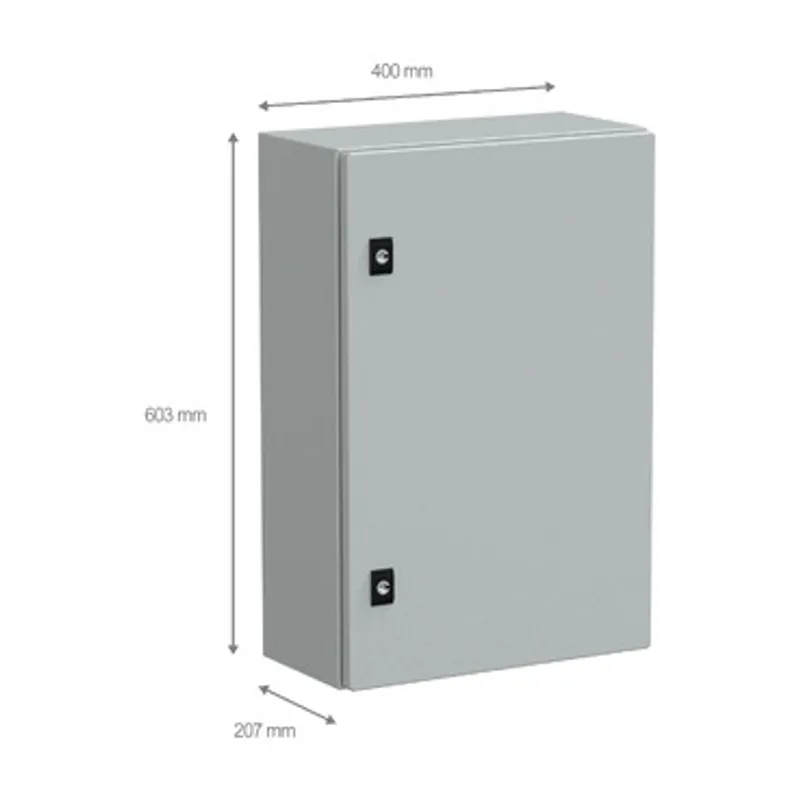

Enclosure nominal height600 mm
Enclosure nominal width400 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight9.83 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 41.000 cm × 21.500 cm × 61.000 cm (L × W × H), 9.636 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 196.000 cm (L × W × H), 302.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN64200: frequently asked questions

When can NSYCRN64200 be shipped?

NSYCRN64200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN64200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN64200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN64200, subject to availability and destination.

More Schneider Electric parts

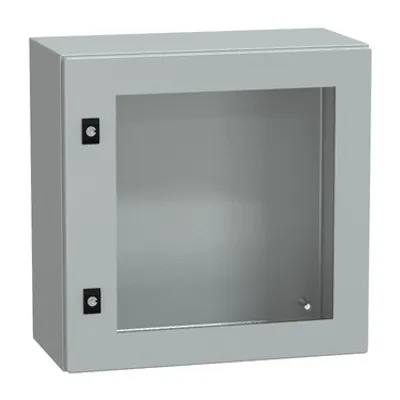

Schneider Electric NSYCRN55250T – PanelSeT CRN tspt door w/o mount.plate. H500xW500xD250 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN55250T

PanelSeT CRN tspt door w/o mount.plate. H500xW500xD250 IP66 IK08 RAL7035..

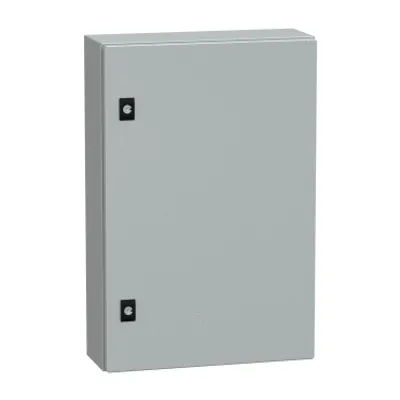

Schneider Electric NSYCRN64150 – PanelSeT CRN plain door w/o mount.plate. H600xW400xD150 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN64150

PanelSeT CRN plain door w/o mount.plate. H600xW400xD150 IP66 IK10 RAL7035..

Schneider Electric NSYCRN64150P – PanelSeT CRN plain door with mount.plate. H600xW400xD150 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN64150P

PanelSeT CRN plain door with mount.plate. H600xW400xD150 IP66 IK10 RAL7035..

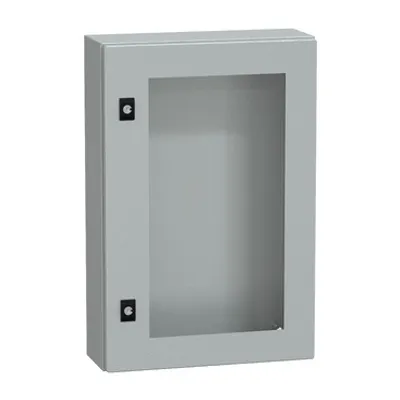

Schneider Electric NSYCRN64150T – PanelSeT CRN tspt door w/o mount.plate. H600xW400xD150 IP66 IK08 RAL7035..
