Schneider Electric NSYCRN64150P

PanelSeT CRN plain door with mount.plate. H600xW400xD150 IP66 IK10 RAL7035..

MPN
NSYCRN64150P
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN64150P?

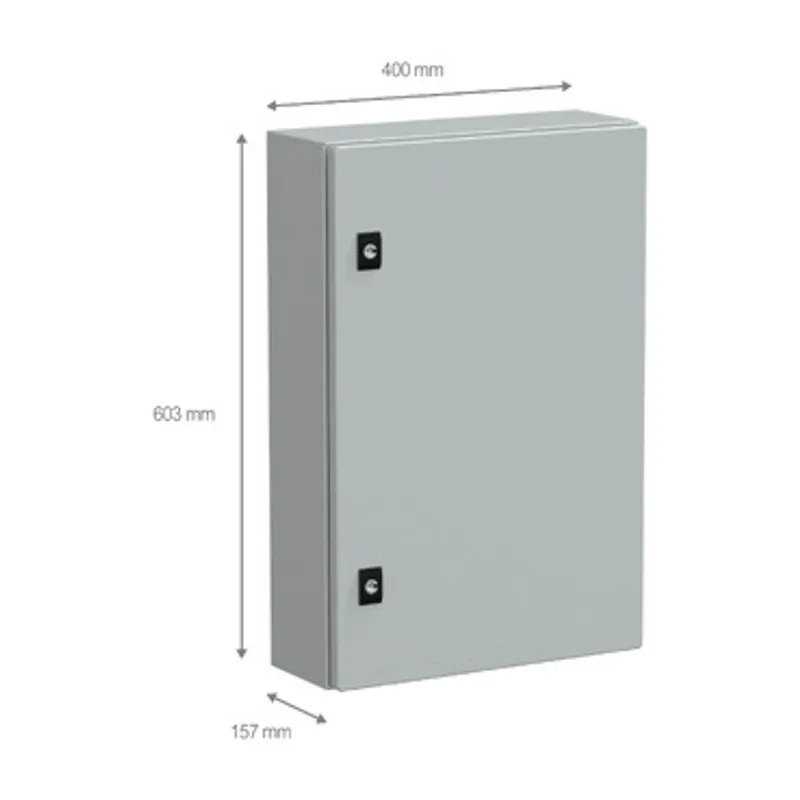

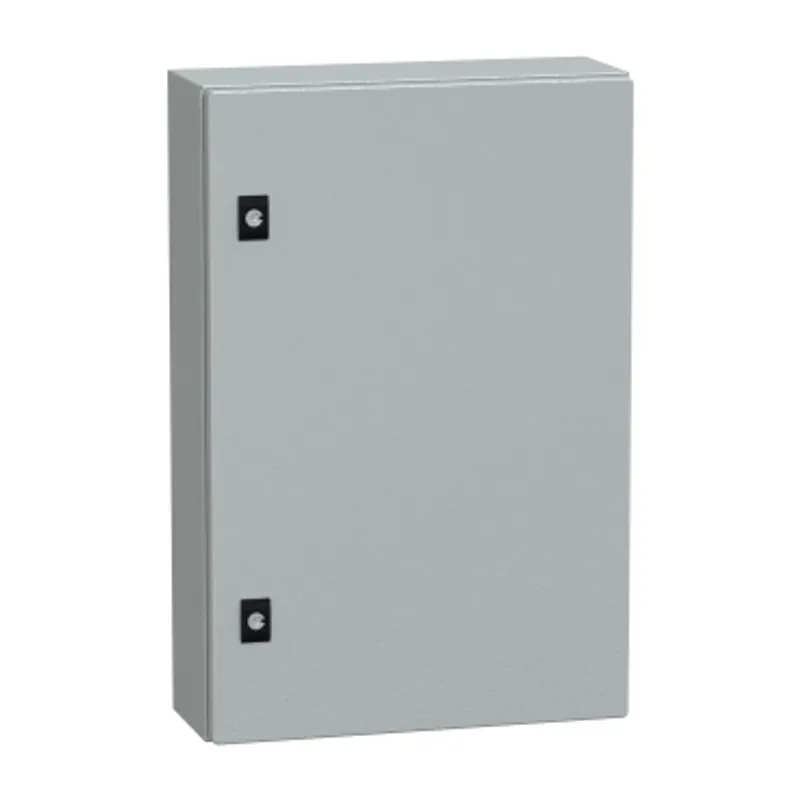

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a mounting plate It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, cable gland plate, and mounting plate can be removed for maintenance purposes The mounting plate is made of galvanised steel The net weight of the enclosure is 11,69kg This compact enclosure is c.UL certified.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height600 mm
Enclosure nominal width400 mm
Enclosure nominal depth150 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door typePlain
Mounting plate descriptionPlain
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight11.69 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 61.500 cm × 41.000 cm × 17.000 cm (L × W × H), 11.646 kg
Package 244 PAM, 120.000 cm × 100.000 cm × 203.000 cm (L × W × H), 525.424 kg
