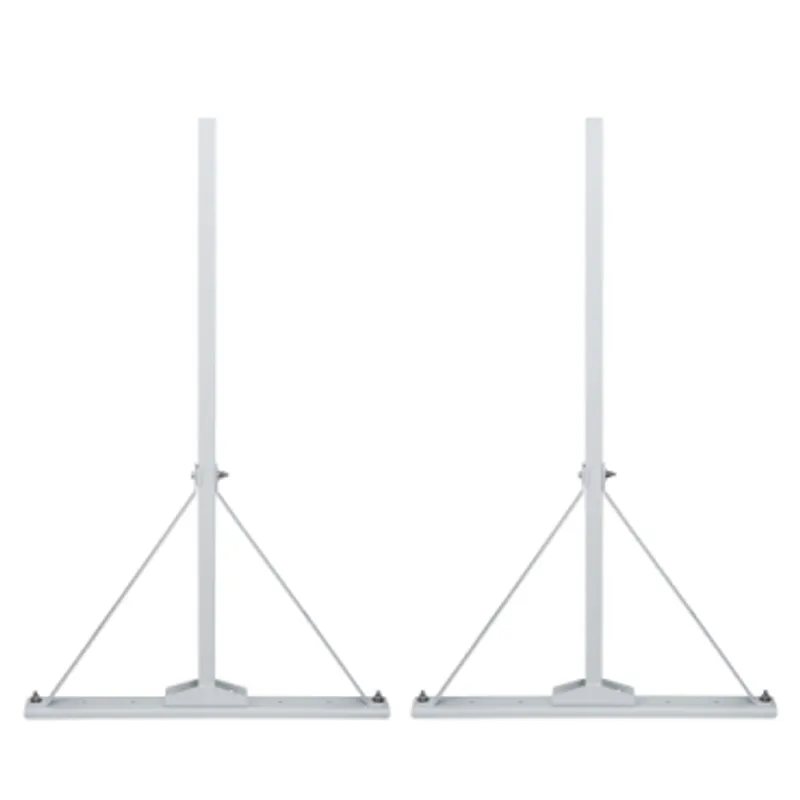

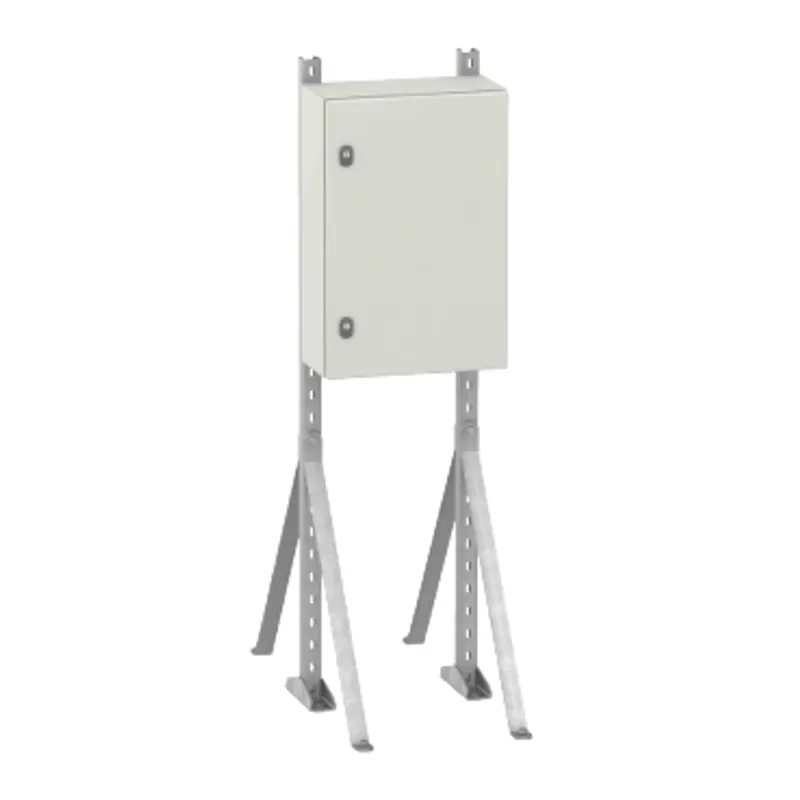

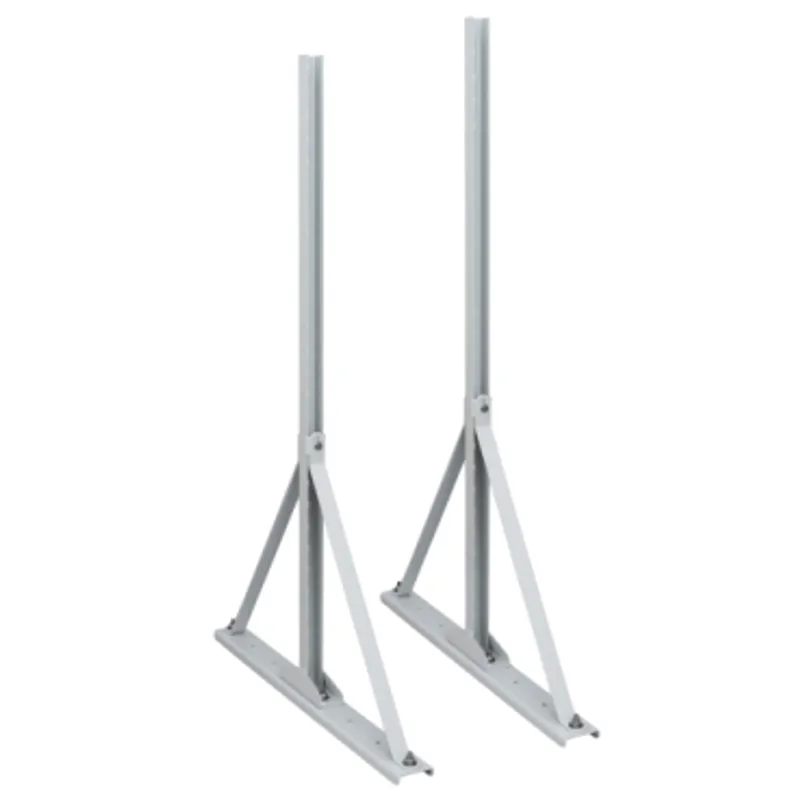

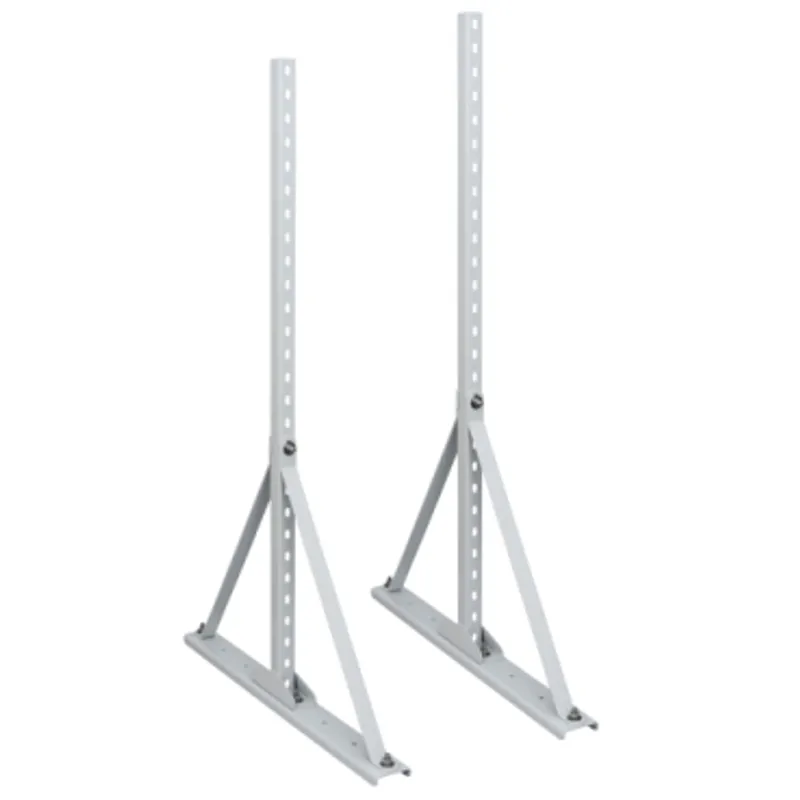

PanelSeT - Support bracket for enclosure D300 max. with anti-tilt kit H 1400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 22.5 kg |
Shipping & availability
When can NSYCOCNS1400 be shipped?
NSYCOCNS1400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCOCNS1400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCOCNS1400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCOCNS1400, subject to availability and destination.
Schneider Electric PanelSeT - Support bracket for enclosure D300 max. with anti-tilt kit H 1400 mm, manufacturer part number NSYCOCNS1400. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product destination | Enclosure |
| Product or component type | Support bracket |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Mounting support | Floor |
| Range compatibility | PanelSeT PLM, PanelSeT CRN, PanelSeT S3X |
| Device composition | Fixing elements, 1 fixing bracket, 2 upright |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element - uprights location |
| Permanent permissible load | 120 kg |
| Height | Nominal: 1400 mm |
| Width | 250 mm |
| Net weight | 22.5 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 155.000 cm |
| Package 1 Weight | 22.500 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 62.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 596.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestRemovable cage nut M8. Supply: 50 units

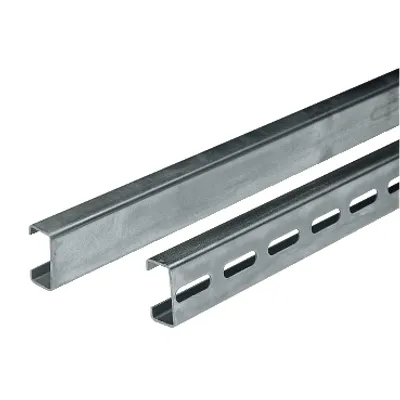

Available on requestSymmetric C-shaped rails drilled 21x11x10. Length 2000mm. Supply: 20 rails 2m.
Available on requestSymmetric C-shaped rails drilled 40x20x24. Length 2000mm. Supply: 20 rails 2m.
Available on requestMounting pillar for PanelSeT S3D encl. RAL7035. H800m.
Available on requestPanelSeT - Support bracket for enclosure D300 max. with anti-tilt kit H 1800 mm
Available on requestClimaSys PTC heating resistance 100W, 12-24V

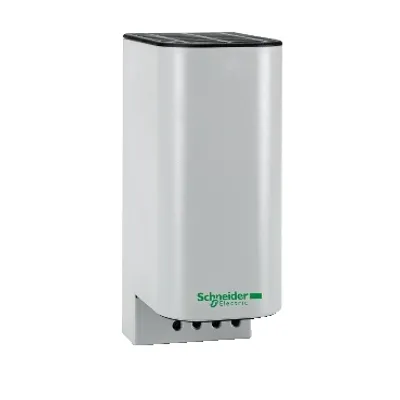

Available on requestClimaSys PTC heating resistance 100W, 12-24V insulate
