Schneider Electric NSYCEP

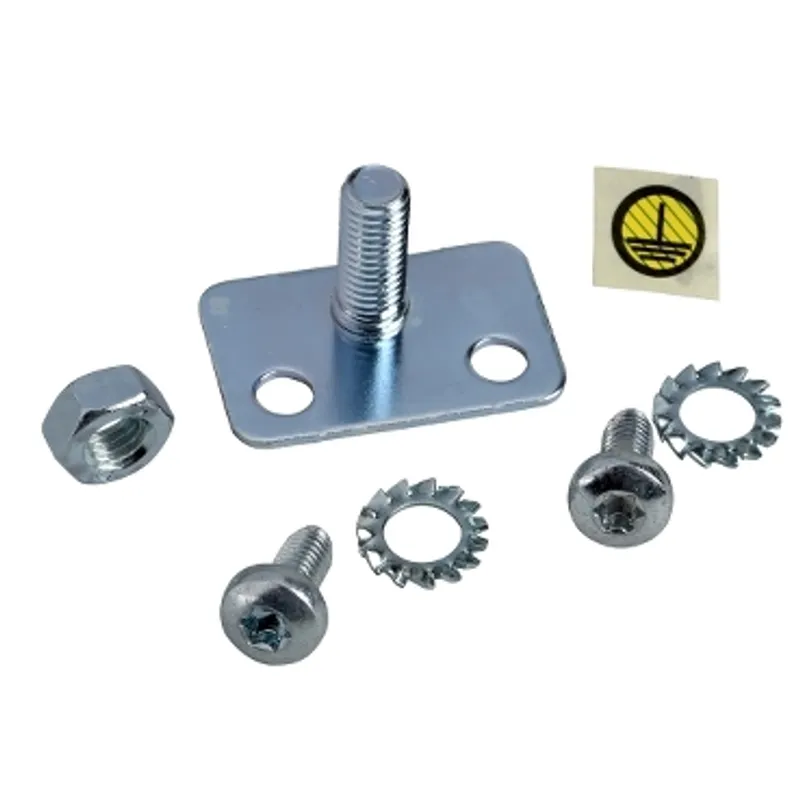

Central earthing point, PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SD, M8 x 18mm
- MPN
- NSYCEP
- EAN
- 3606480063138
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCEP?
This is a central earthing point suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SD electrical enclosures. It is designed to attach earthing braids and cables to the enclosure's structure using self-tapping screws. The kit contains 1 central earthing point and fixing elements. The kit contains 1 central earthing point and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Earthing central point |
| Mounting location | On structure of enclosure |
| Device composition | Fixing elements, screws and nuts, 1 earthing centre point |
| Quantity per set | Set of 1 |
| Fixing mode | By fixing element - screw type M8 - bolt location, By self-tapping screws - on structure location |
| Length | Earthing bolt: 18 mm |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 9.500 cm × 11.000 cm (L × W × H), 64.000 g |
| Package 2 | 500 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 45.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCEP: frequently asked questions
When can NSYCEP be shipped?
NSYCEP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCEP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCEP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCEP, subject to availability and destination.
