Painted steel cover cut-out 125x125mm with filter IP55
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.45 kg |
Shipping & availability
When can NSYCAP125LZF be shipped?
NSYCAP125LZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAP125LZF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAP125LZF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAP125LZF, subject to availability and destination.

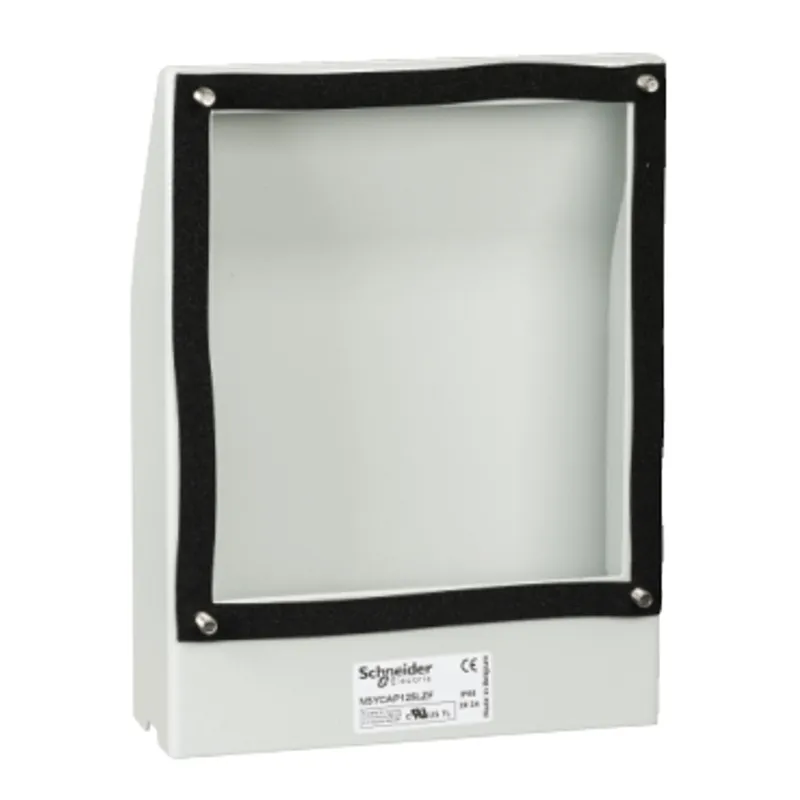

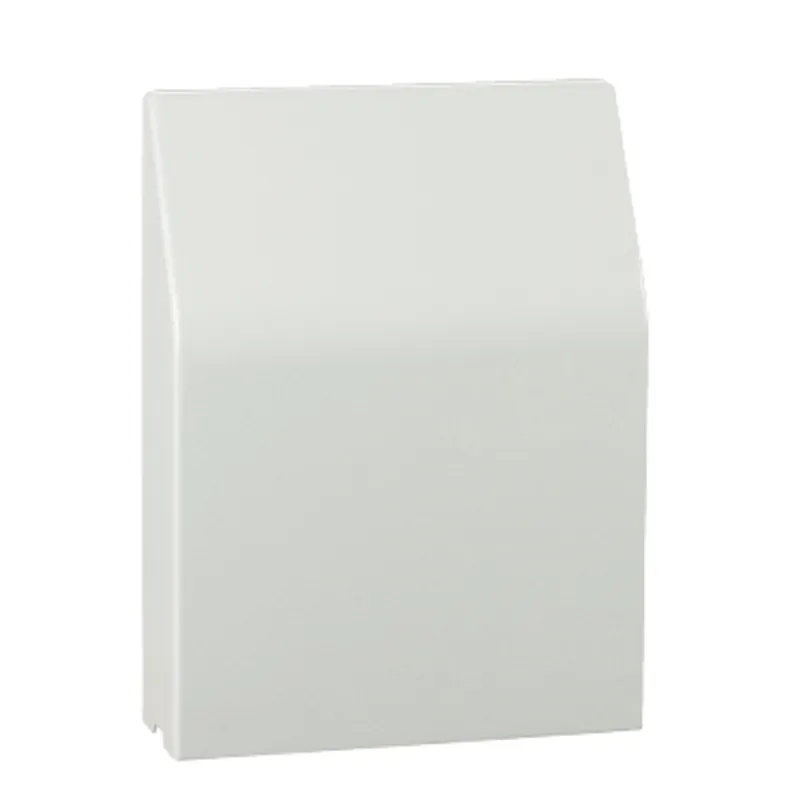

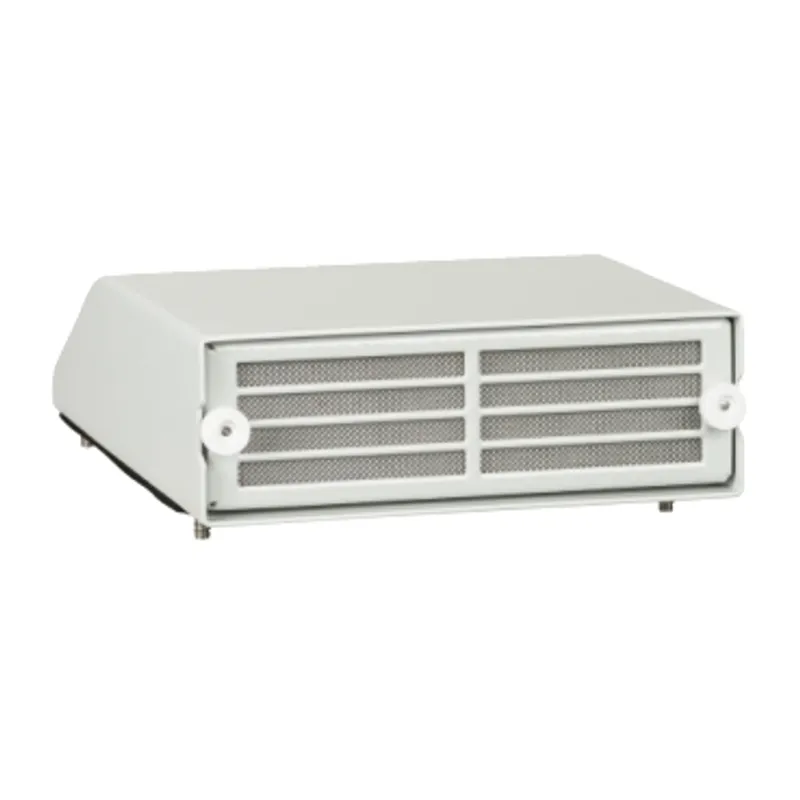

Sealing cover for ClimaSys CV EMC fan The product is made from grey painted steel (RAL 7035) The external width is 180mm The external height is 240mm The external depth is 60mm Cut-out dimensions is 125 x 125mm
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | Sealing cover |
| Accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
| fixing mode | By screws |
| Range compatibility | ClimaSys ClimaSys CV EMC fan |
| Device composition | 1 cover, 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 125 x 125 mm |
| Height | External: 240 mm |
| Width | External: 180 mm |
| Depth | External : 60 mm |
| Certification | CSA |
| IP degree of protection | IP55 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 1.450 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 125.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 252.000 kg |
| Warranty | 18 months |
More Schneider Electric parts

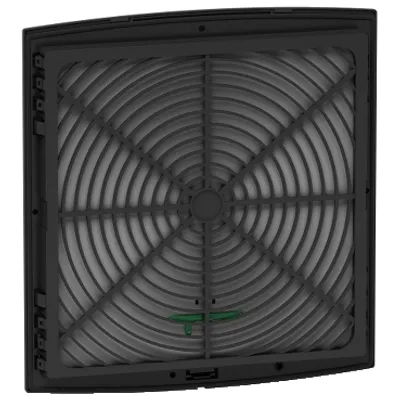

Available on requestClimaSys CA - CSVS SmartGrid for cut-out 92x92mm
