Schneider Electric NSYCAG92LPF
Outlet grille plast cut out 92x92mm ext dim 137x117mm IP54
- MPN
- NSYCAG92LPF
- EAN
- 3606480151521
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

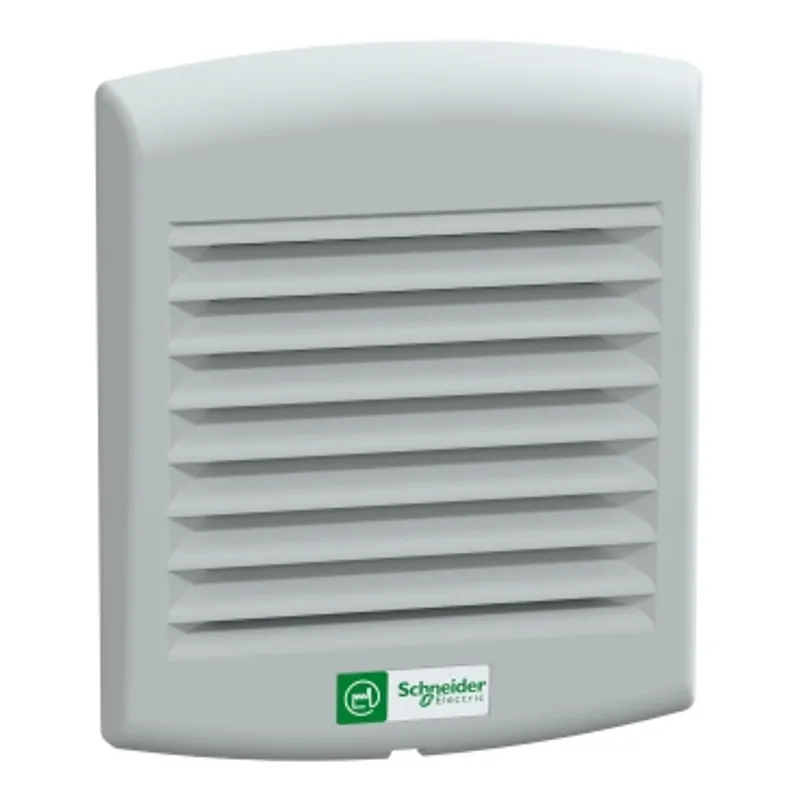

What is the Schneider Electric NSYCAG92LPF?
Outlet grille 92 x 92mm made from injected thermoplastic (ASA PC) for Prisma P and ClimaSys CV fan The kit is made of 1 external part for front, 1 support frame and 1 G2 M1 synthetic standard filter for rear of outlet grille The external width is 117mm Ingress protection rating (according to IEC 60529) is IP54 Fixing by screws or by clips Cut-out dimensions is 92 x 92mm Painted in external part: grey (RAL 7035)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Prisma Prisma P, ClimaSys ClimaSys CV fan |
| Certification | CSA |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 external part: front, 1 support frame, 1 G2 M1 synthetic standard filter: rear of outlet grille |
| Material | Injected thermoplastic (ASA PC) |
| Colour | External part: grey (RAL 7035) |
| Cut-out dimensions | 92 x 92 mm |
| Height | External: 137 mm |
| Width | External: 117 mm |
| Depth | External : 13 mm |
Packaging
| Package 1 | 1 PCE, 14.500 cm × 12.500 cm × 4.000 cm (L × W × H), 149.000 g |
| Package 2 | 102 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 15.198 kg |
| Package 3 | 816 P12, 120.000 cm × 80.000 cm × 91.000 cm (L × W × H), 134.600 kg |
