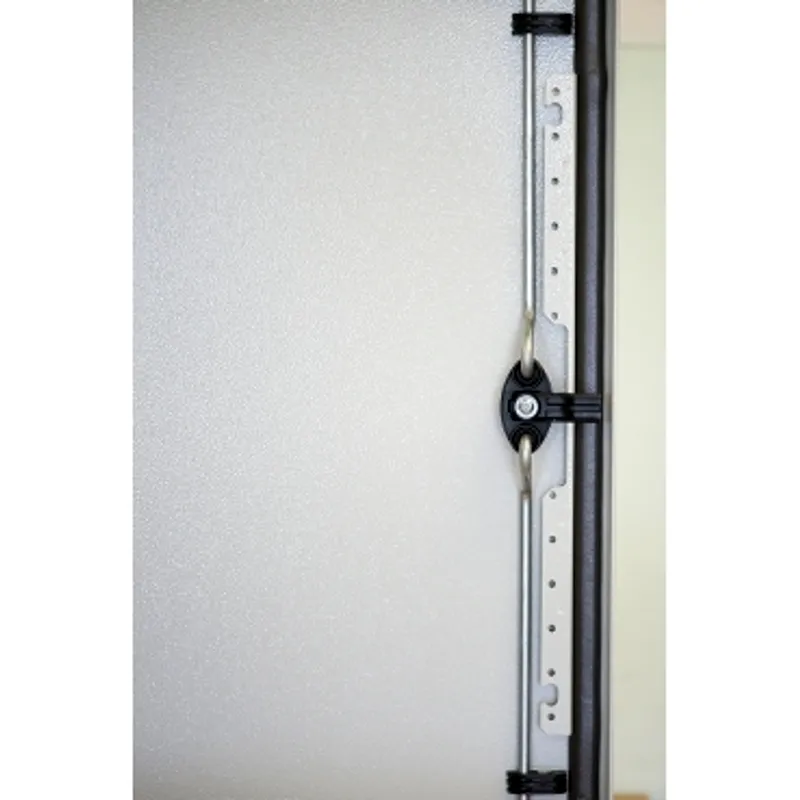

3 point lock linkage for PanelSeT S3D, height 1200mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spare parts for universal enclosures |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.48 kg |
Shipping & availability
When can NSYBTAS3D120 be shipped?
NSYBTAS3D120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBTAS3D120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBTAS3D120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBTAS3D120, subject to availability and destination.
Schneider Electric 3 point lock linkage for PanelSeT S3D, height 1200mm, manufacturer part number NSYBTAS3D120. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Linkage |
| Accessory / separate part category | Locking accessory |
| Accessory / separate part type | Closing element |
| Device application | Multi-purpose |
| Enclosure nominal height | 1200 mm |
| Mounting support | Direct mounting on door |
| Range compatibility | PanelSeT S3D |
| Device composition | 1 mechanism, 1 mounting support |
| Quantity per set | Set of 1 |
| Net weight | 0.477 kg |
| Lock type | 3 points lock, 3 mm double-bar |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 74.000 cm |
| Package 1 Weight | 628.000 g |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 15.700 kg |
| Warranty (in months) | 18 |
