Schneider Electric NSYBTAS3D100

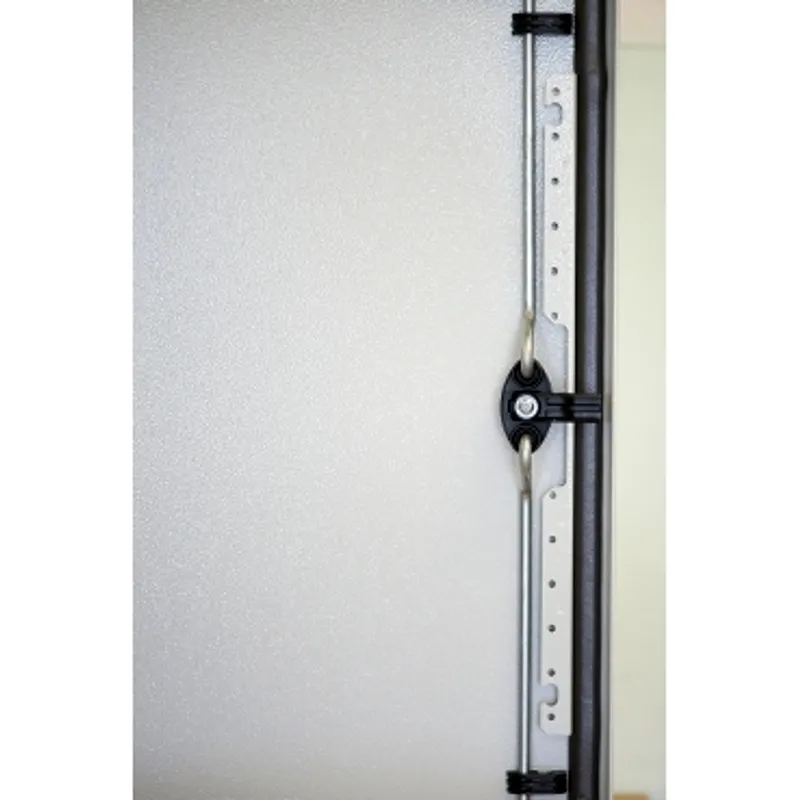

3 point lock linkage for PanelSeT S3D, height 1000mm
- MPN
- NSYBTAS3D100
- EAN
- 3606480428401
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBTAS3D100?
Schneider Electric 3 point lock linkage for PanelSeT S3D, height 1000mm, manufacturer part number NSYBTAS3D100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Linkage |
| Accessory / separate part category | Locking accessory |
| Accessory / separate part type | Closing element |
| Device application | Multi-purpose |
| Enclosure nominal height | 1000 mm |
| Mounting support | Direct mounting on door |
| Range compatibility | PanelSeT S3D |
| Device composition | 1 mechanism, 1 mounting support |
| Quantity per set | Set of 1 |
| Net weight | 0.617 kg |
| Lock type | 3 points lock, 3 mm double-bar |
Packaging
| Package 1 | 1 PCE, 73.5 cm × 8.0 cm × 7.0 cm (L × W × H), 578.0 g |
| Package 2 | 15 PAL, 120.0 cm × 37.5 cm × 29.0 cm (L × W × H), 8.67 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBTAS3D100: frequently asked questions
When can NSYBTAS3D100 be shipped?
NSYBTAS3D100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBTAS3D100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBTAS3D100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBTAS3D100, subject to availability and destination.
