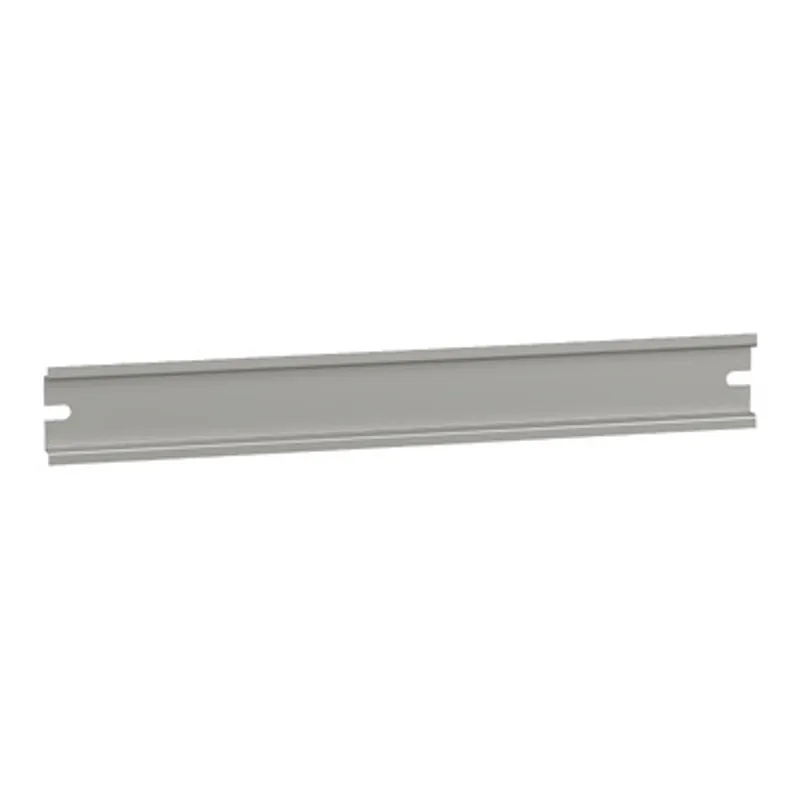

Symmetrical DIN rail, H35xD7.5 mm Length: 264 mm, for boxes of 275 mm (Internal)
Set of 10 symmetrical DIN rails for boxes to be used in PanelSeT TBS and PanelSeT TBP enclosures The rail is made from zinc coated 1mm steel and is widely used for mounting circuit breakers and industrial control The width is 7,5mm and height is 35mm The product real length is 264mm and internal box height or width is 275mm The rail is used to maintain complex control circuits in applications such as energy management, power supplies and lighting controllers Supplied without screws Net weight is 0,092kg
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Rail |
| Device application | Multi-purpose |
| For enclosure nominal dimensions | - |
| quantity per package | Set of 10 |
| Type of rail | Symmetrical DIN |
| Range compatibility | PanelSeT, PanelSeT TBS |
| Device composition | 1 rail |
| Material | Steel |
| Surface finish | Zinc coated |
| Length | Real: 264 mm, Internal box height or width: 275 mm |
| Height | 35 mm |
| Width | 7.5 mm |
| thickness | 1 mm |
| Net weight | 0.092 kg |
| Package 1 | 1 PCE, 26.400 cm × 4.000 cm × 0.800 cm (L × W × H), 92.000 g |
| Package 2 | 10 BB1, 28.000 cm × 11.000 cm × 3.000 cm (L × W × H), 940.000 g |
| Package 3 | 50 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 4.880 kg |
