Schneider Electric NSYAMPM2419TB

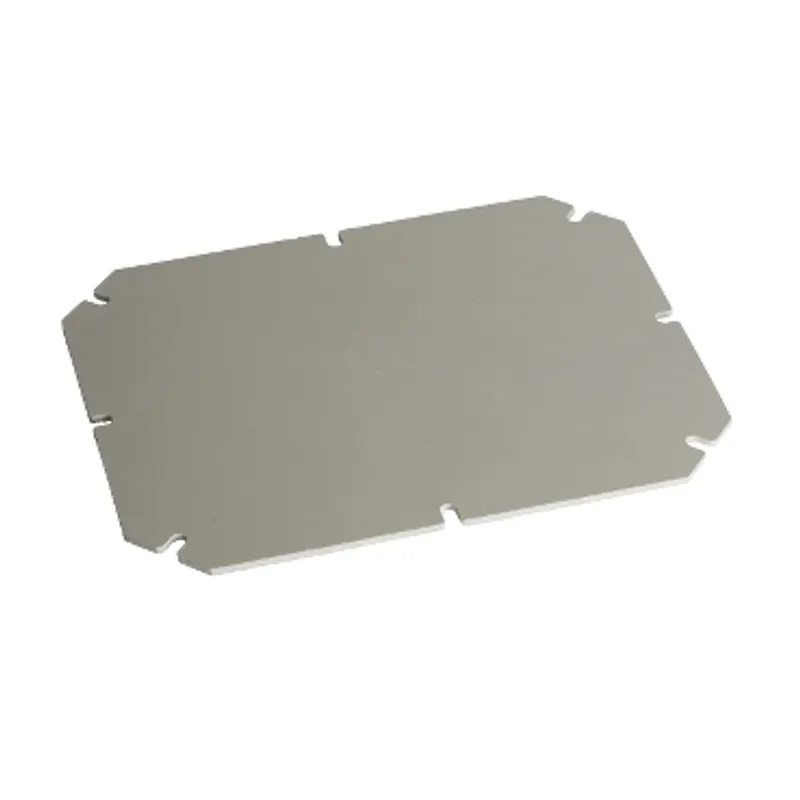

Mounting plate in galvanized steel, thickness 1.5 mm For boxes of H225W175 mm

MPN
NSYAMPM2419TB
EAN
3606480166099
Category
PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYAMPM2419TB?

For boxes H is 225 x W is 175 mm. Mounting accessory. Multi-purpose application. Thickness 15 mm. Mounting on back studs. Fixing by screws type M4 self tapping. Galvanized Steel.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack studs
Mounting plate descriptionPlain
Range compatibilityPanelSeT TBS, PanelSeT PanelSeT TBP
Device composition1 mounting plate
MaterialGalvanised steel
Fixing modeBy screws - screw type M4 self tapping - on back studs location
HeightNominal: 241 mm, Real: 1685 mm
WidthNominal: 194 mm, Real: 215 mm
thickness1.5 mm
Net weight0.12 kg

Packaging

Package 11 PCE, 21.500 cm × 17.000 cm × 0.200 cm (L × W × H), 400.000 g
Package 210 CAR, 23.000 cm × 19.500 cm × 4.000 cm (L × W × H), 4.000 kg
Package 3480 PAM, 120.000 cm × 100.000 cm × 23.000 cm (L × W × H), 214.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYAMPM2419TB: frequently asked questions

When can NSYAMPM2419TB be shipped?

NSYAMPM2419TB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYAMPM2419TB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYAMPM2419TB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAMPM2419TB, subject to availability and destination.
