Side panels, PanelSeT SFN, for electrical enclosure H2200 D600mm, external fixing, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SFN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 98.8 kg |
Shipping & availability
When can NSY2SPN226 be shipped?
NSY2SPN226 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY2SPN226 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY2SPN226 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY2SPN226, subject to availability and destination.
Schneider Electric Side panels, PanelSeT SFN, for electrical enclosure H2200 D600mm, external fixing, set of 2, manufacturer part number NSY2SPN226. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 2200 mm D: 600 mm |
| Mounting location | Sides of enclosure |
| Range compatibility | PanelSeT SFN |
| Device composition | Fixing elements, 2 side panel |
| Material | Steel |
| Net weight | 98.8 kg |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |

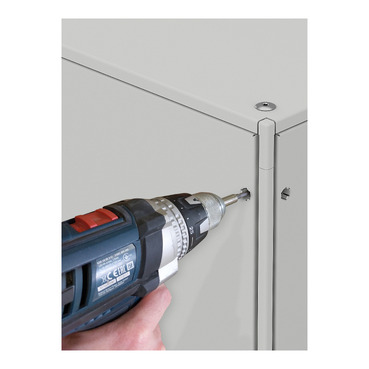

| Fixing mode | By screws - screw type captive - from the outside of enclosure location |
| Height | Nominal: 2200 mm |
| Width | Nominal: 600 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 57.500 cm |
| Package 1 Length | 222.300 cm |
| Package 1 Weight | 35.800 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 83.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 222.300 cm |
| Package 2 Weight | 746.000 kg |
| Warranty (in months) | 18 |
