Schneider Electric METSECT5HM060

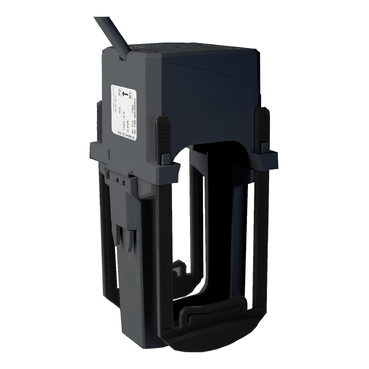

PowerLogic Split Core Current Transformer - Type HM, for cable diameter 42.4mm, 0600A / 5A
- MPN
- METSECT5HM060
- EAN
- 3606489608361
- Category
- PowerLogic™ Current Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric METSECT5HM060?
This current transformer, standard for cable, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 42.4 mm x 85 mm opening. Burden and accuracy class as follows: class 0.5 maximum power: 2.5 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 2.5 VA |
| [In] rated current | 600 A |
| Current transformer type | Standard for cable, Split core |
| Current transformer ratio | 600/5 |
| [Ith] conventional free air thermal current | 720 A |
| Maximum safety factor | 5 |
| Permissible current | 36000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Clip-on |
| Width | Outside: 67 mm, Inner: 42.4 mm |
| Height | Outside: 139 mm, Inner: 85 mm |
| Depth | 69 mm |
| Diameter | 42.4 mm inner: |
| Electrical insulation class | Class E |
| Cable outer diameter | 42.4 mm |
| Connections - terminals | Cable 2 cable(s) 0.5…1.5 mm² 0.5 m |
| Standards | DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414 |
| Ambient air temperature for operation | -5…50 °C |
| Ambient air temperature for storage | -25…70 °C |
Packaging
| Package 1 | 1 PCE, 14.4 cm × 7.0 cm × 8.3 cm (L × W × H), 512.0 g |
| Package 2 | 24 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 12.8 kg |
