Schneider Electric METSECT5HG060

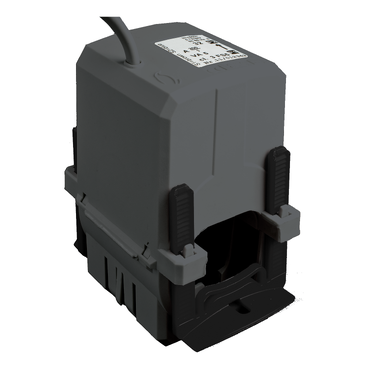

PowerLogic Split Core Current Transformer - Type HG, for cable - 0600A / 5A

MPN
METSECT5HG060
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric METSECT5HG060?

This current transformer, standard for cable, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 32.5 mm. Burden and accuracy class as follows: class 1 maximum power: 5 VA.

Specifications

Specifications

RangePowerLogic
Product nameCT
Product or component typeCurrent transformer
Secondary current5 A
Accuracy classClass 1 at 5 VA
[In] rated current600 A
Current transformer typeStandard for cable, Split core
Current transformer ratio600/5
[Ith] conventional free air thermal current720 A
Maximum safety factor5
Permissible current36000 A during 1 s
[Ue] rated operational voltage< 720 V 50 Hz
[Ui] rated insulation voltage3 kV
Mounting modeClip-on
WidthOutside: 59.2 mm
HeightOutside: 96.4 mm
Depth89.2 mm
Diameter32.5 mm inner:
Electrical insulation classClass E
Cable outer diameter32.5 mm
Connections - terminalsCable 2 cable(s) 0.5…1.5 mm² 0.5 m
StandardsDIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414
Ambient air temperature for operation-5…50 °C
Ambient air temperature for storage-25…70 °C

Packaging

Package 11 PCE, 13.0 cm × 7.5 cm × 8.0 cm (L × W × H), 410.0 g
Package 220 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 8.761 kg
