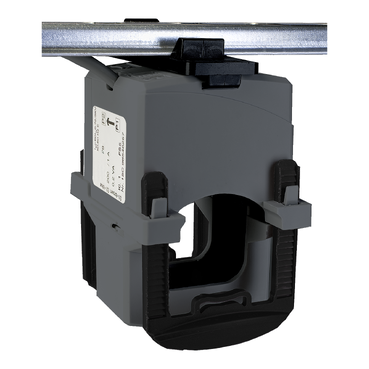

PowerLogic Split Core Current Transformer - Type HD, for cable - 0400A / 5A

MPN: METSECT5HD040
Category: PowerLogic™ Current Transformers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric METSECT5HD040?

This current transformer, standard for cable, has a line rated current of 400 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Burden and accuracy class as follows: class 1 maximum power: 2.5 VA.

Specifications

Range	PowerLogic
Product or component type	Current transformer
Product name	CT
Secondary current	5 A
Accuracy class	Class 1 at 2.5 VA
[In] rated current	400 A
Current transformer type	Standard for cable, Split core
Current transformer ratio	400/5
[Ith] conventional free air thermal current	480 A
Maximum safety factor	5
Permissible current	24000 A during 1 s
[Ue] rated operational voltage	< 720 V 50 Hz
[Ui] rated insulation voltage	3 kV 50 Hz for 1 minute
Mounting mode	Clip-on
Width	Outside: 49 mm
Height	Outside: 79.5 mm
Depth	59 mm
Diameter	27 mm inner:
Electrical insulation class	Class E
Cable outer diameter	27.9 mm
Connections - terminals	Cable 2 cable(s) 0.5…1.5 mm² 0.5 m
Standards	DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414
Ambient air temperature for operation	-5…50 °C
Ambient air temperature for storage	-25…70 °C

Packaging

Package 1	1 PCE, 7.0 cm × 6.5 cm × 9.5 cm (L × W × H), 272.0 g
Package 2	18 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 4.995 kg
