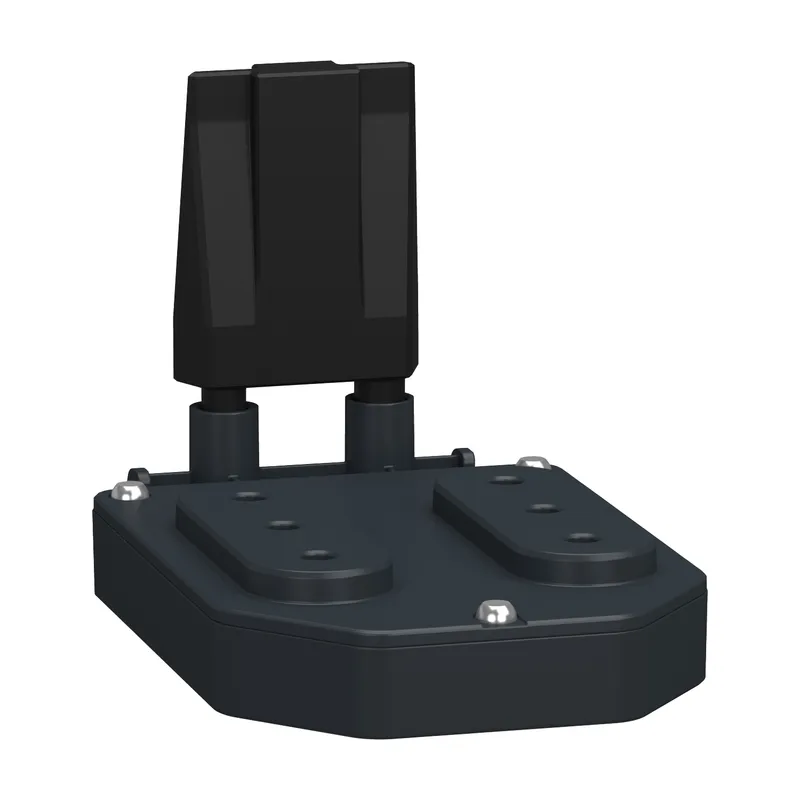

Schneider Electric LXMMCBPAB01S100 – power disconnector, Lexium MC12
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lexium™ MC12 multi carrier |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3606482085121 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can LXMMCBPAB01S100 be shipped?
LXMMCBPAB01S100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LXMMCBPAB01S100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LXMMCBPAB01S100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMMCBPAB01S100, subject to availability and destination.
"The power disconnector is part of Lexium MC12 multi carrier range, a modular transportation system." "This power interconnect supports the transmission of the DC power of a track." "This plugable connector is made to interconnect curve or straight long stator segments." "It is equipped with power infeed connectors." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "Power interconnects install at the base of the junction of 2 long straight/curved stator segments." "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Lexium MC12 multi carrier |
| Accessory / separate part designation | Power disconnector |
| Accessory / separate part type | Connector |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Longstator motor |
Complementary
| Length | 119 mm |
| Width | 75 mm |
| Depth | 82 mm |
| Net weight | 0.4 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet LXMMCBPAB01S100 |
