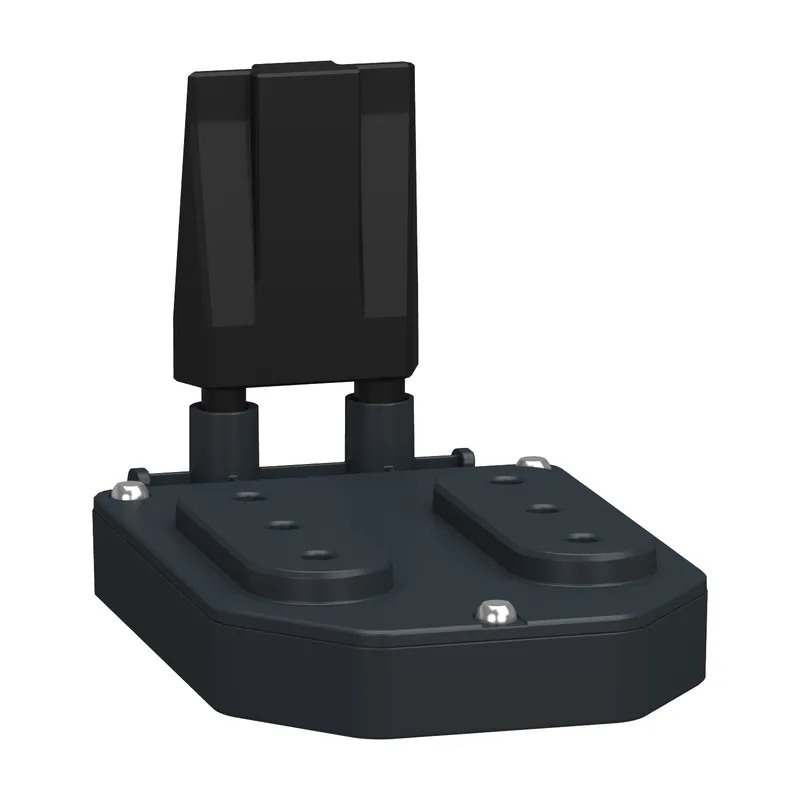

What is the Schneider Electric LXMMCBPA001S100?

"The power interconnect is part of Lexium MC12 multi carrier range, a modular transportation system." "This power interconnect supports the transmission of the DC power of a track." "This plugable connector is made to interconnect long stator segments." "It is equipped with M23 connectors." "It uses M3x8 screw IOS14583, with 0.6Nm torque." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "It is sold individually." "Power interconnects install at the base of the junction of 2 long straight/curved stator segments." "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium MC12 multi carrier
Accessory / separate part designationPower interconnect
Accessory / separate part typeConnector
Accessory / separate part categoryConnection accessories
Accessory / separate part destinationLongstator motor

Complementary

Length119 mm
Width75 mm
Depth82 mm
Quantity per set1 piece
Net weight0.4 kg
