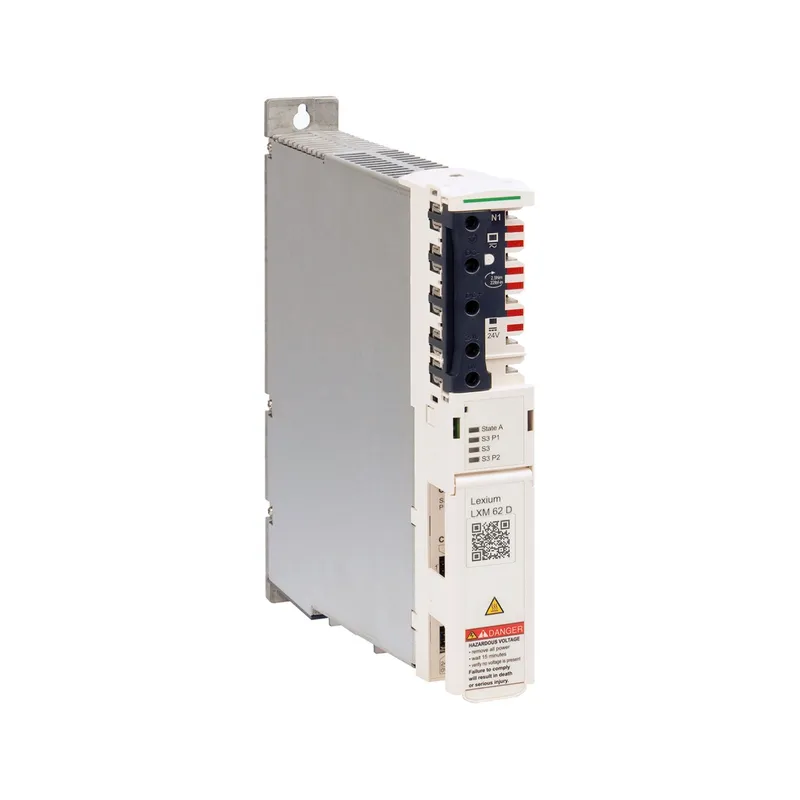

Schneider Electric LXM62DU60C21000 – Lexium 62 Single Drive - 6 A - accessory kit included

MPN: LXM62DU60C21000 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 62 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3606485317779
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXM62DU60C21000 be shipped?

LXM62DU60C21000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM62DU60C21000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM62DU60C21000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM62DU60C21000, subject to availability and destination.

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 2A at 4kHz and a continuous power of 0.95kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets CSA C22.2 No 14, EN/ISO 13849-2, UL 508C, IEC 62061, EN 61800-5-2 and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (55mm, 1 motor stack), servo motor SH3 (55mm, 2 motor stacks) and servo motor SH3 (55mm, 3 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	PacDrive 3
Device short name	LXM 62
Product or component type	Single drive
Component name	LXM62

Complementary

Product compatibility	Servo motor SHS; Servo motor SH3 (55 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (55 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (55 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of high torque; Servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of high torque; Servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of high torque; Servo motor MH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed
Network number of phases	Three phase
[Us] rated supply voltage	400 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for single phase
Supply frequency	50/60 Hz - 5...5 %
Continuous output current	2 A at 4 kHz
Output current 3s peak	6 A at 4 kHz
Continuous power	0.95 kW
Nominal power	0.95 kW
Switching frequency	8 kHz
Overvoltage category	III
Electrical connection	Terminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4); Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5); Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6); Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7)
Tightening torque	CN1: 2.5 N.m
Number of inputs	2 digital; 2 touch probe
Discrete input voltage	24 V DC for - 20...25 %
Number of outputs	2 digital
Discrete output voltage	24 V DC
Safety function	STO (safe torque off)
Communication interface	SERCOS III, integrated
Depth	270 mm
Height	310 mm
Width	44.5 mm
Net weight	3 kg

Environment

Standards	CSA C22.2 No 14; ISO 13849-2; UL 508C; IEC 62061; IEC 61800-5-2; ISO 13849-1; IEC 61800-3; IEC 61508; IEC 61800-5-1
Product certifications	CE; TÜV; UL; CSA; EAC
IP degree of protection	IP20 conforming to IEC 60529
Vibration resistance	10 m/s² conforming to IEC 60721-3-3
Shock resistance	100 m/s² conforming to IEC 60721-3-3
Pollution degree	2 conforming to IEC 61800-5-2
Environmental characteristic	3K3 conforming to IEC 60721-3-3
Relative humidity	5…85 %
Ambient air temperature for operation	5…55 °C
