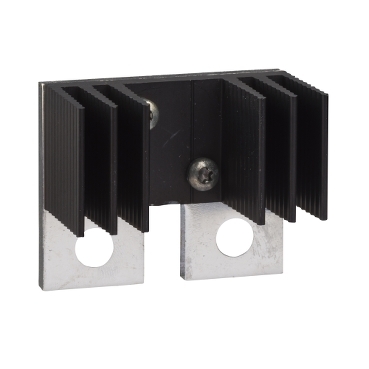

Schneider Electric LV438328
Connection plate with heatsink, ComPacT NSX100DC to NSX250DC, parallel or serial connection of 2 poles, 1 part
- MPN
- LV438328
- EAN
- 3606480073236
- Category
- ComPact INS/INV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV438328?
Schneider Electric Connection plate with heatsink, ComPacT NSX100DC to NSX250DC, parallel or serial connection of 2 poles, 1 part, manufacturer part number LV438328. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product or component type | Connection plate |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, ComPact Compact NSX100 DC PV, ComPact Compact NSX160 DC PV, ComPact Compact NSX250 DC PV, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 2P |
| Quantity per set | 1 |
| Output coupling | Parallel, Serial |
Packaging
| Package 1 | 1 PCE, 18.000 cm × 12.000 cm × 4.000 cm (L × W × H), 279.900 g |
| Package 2 | 60 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 17.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV438328: frequently asked questions
When can LV438328 be shipped?
LV438328 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV438328 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV438328 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV438328, subject to availability and destination.
