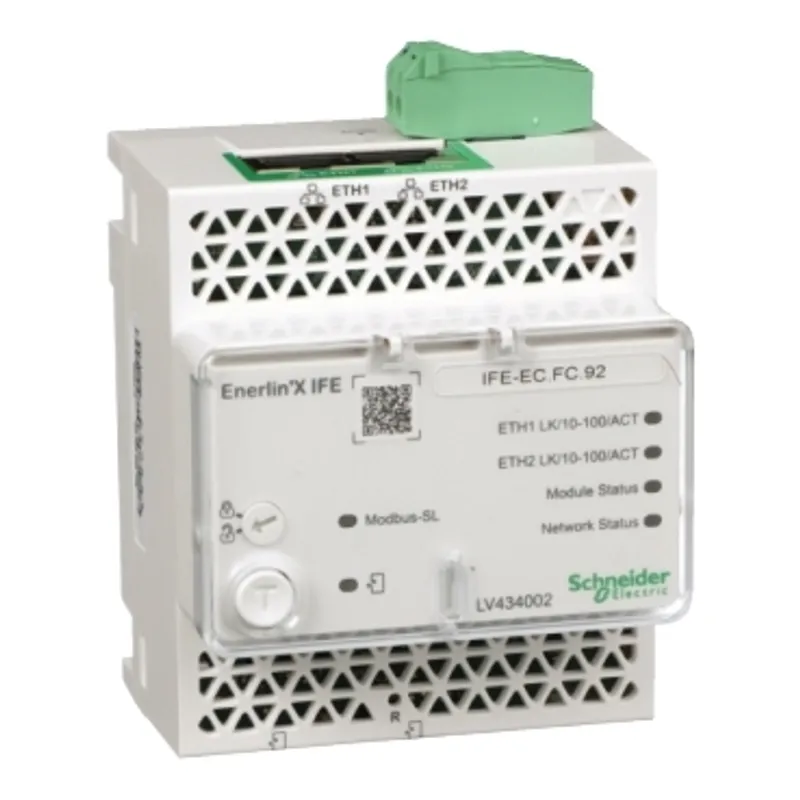

Schneider Electric LV434002
IFE Ethernet switchboard server, Enerlin'X
- MPN
- LV434002
- EAN
- 3606481283146
- Category
- Enerlin’X IFE, EIFE, IFM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV434002?
This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.
Specifications
Specifications
| Range of product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
| Device short name | IFE |
| Product or component type | Interface module |
| Range compatibility | Masterpact MasterPact MTZ, Masterpact MasterPact NT, Masterpact MasterPact NW, ComPact ComPact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact H, PowerPact PowerPact P, PowerPact PowerPact R |
| Communication network type | Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45, Universal Logic Plug on 2-port RJ45, Modbus TCP/IP, Modbus TCP master9.6...38.4 kbauds |
| Communication gateway | Ethernet TCP/IP to Modbus |
| Web server | Embedded HTTP server |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Control type | By software |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Maximum supply current | 3 A |
| Current consumption | 120 mA |
| Connections - terminals | RJ45 connector |
| Product certifications | CE, GOST, cULus, FCC |
| Standards | IEC 60947-6-2, UL 508, UL 60950, IEC 60950 |
| Height | 105 mm |
| Width | 72 mm |
| Depth | 71 mm |
| Net weight | 182.5 g |
| Accessory / separate part category | Spare part for Compact NS630b...1600, Spare part for Compact NS1600b...3200 |
| IP degree of protection | Connectors: IP2X, Other parts: IP3x, Front panel: IP4X |
| Relative humidity | 5…85 % |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…70 °C |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11 |
| Shock resistance | 1000 m/s² |
| Vibration frequency | 5…8.4 Hz |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 7.200 cm × 7.100 cm (L × W × H), 257.700 g |
| Package 2 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.609 kg |
