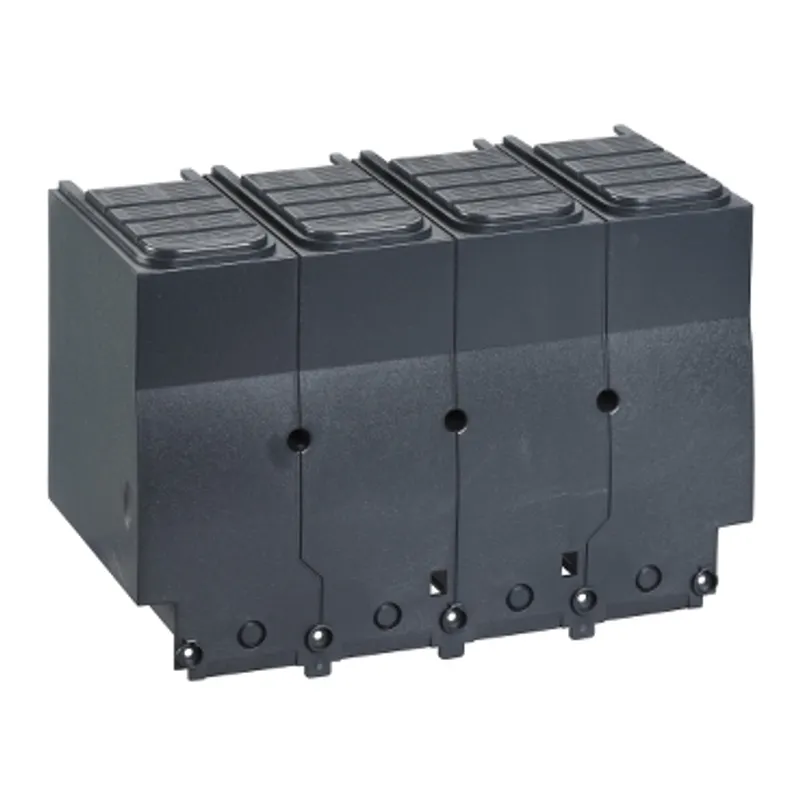

Long terminal shield for spreaders, ComPacT NSX400/630, pitch 52.5mm, IP40, 4 poles
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ComPacT NSX, new generation |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.47 kg |
Shipping & availability
When can LV432596 be shipped?
LV432596 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV432596 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV432596 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV432596, subject to availability and destination.
This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 52.5mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Specifications
Specifications
| Product or component type | Long terminal shield |
| Range compatibility | ComPacT ComPacT NSX400, ComPacT ComPacT NSX630, ComPact ComPact NSX400, ComPact ComPact NSX630, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact Compact INV, ComPact ComPacT INS |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Quantity per set | 1 |
| Connection pitch | 52.5 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 15.500 cm |
| Package 1 Length | 24.000 cm |
| Package 1 Weight | 467.800 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 5.378 kg |
| Warranty (in months) | 18 |
