Schneider Electric LV432594
Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles
- MPN
- LV432594
- EAN
- 3606480019968
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

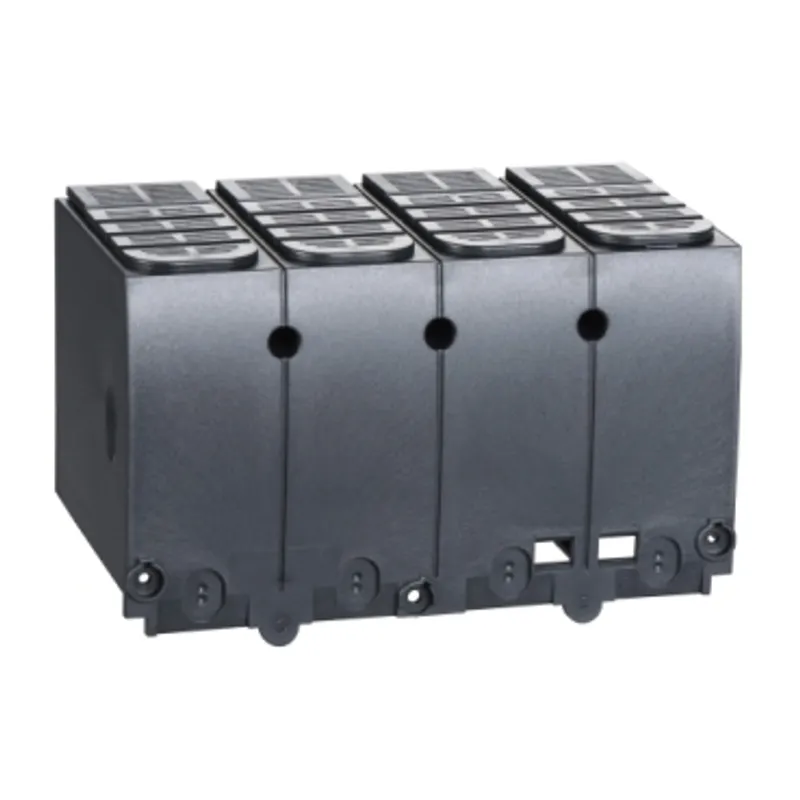

What is the Schneider Electric LV432594?
This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Specifications
Specifications
| Product or component type | Long terminal shield |
| Range compatibility | ComPacT ComPacT NSX400, ComPacT ComPacT NSX630, ComPact ComPact NSX400, ComPact ComPact NSX630, ComPacT ComPacT NSX DC NSX400 DC, ComPacT ComPacT NSX DC NSX630 DC, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact Compact INV, ComPact ComPacT INS |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Quantity per set | 1 |
| Connection pitch | 45 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 11.200 cm × 10.100 cm (L × W × H), 326.100 g |
| Package 2 | 15 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 5.607 kg |
| Package 3 | 60 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 33.626 kg |
