Schneider Electric LV429235
Short rear connections, ComPacT NSX, EasyPact CVS, 250A, set of 2 parts
- MPN
- LV429235
- EAN
- 3606480019692
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV429235?

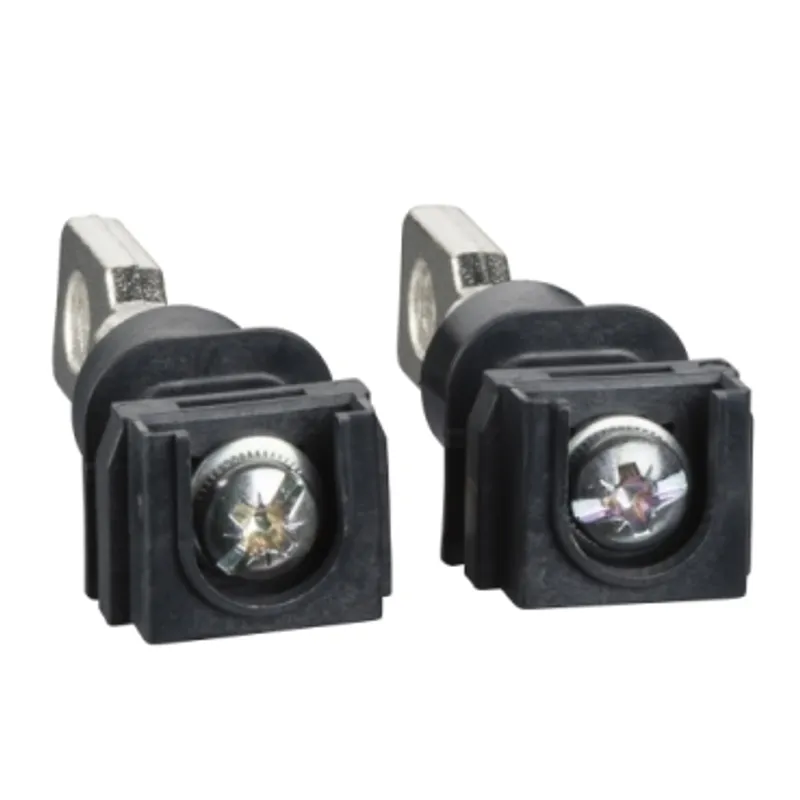

These accessories are short rear connections for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. The rear connection is simply fitted to the device connection terminals. Device mounting on a backplate with suitable holes enables rear connection. The length is approximately 43mm. The rated current is up to 250 A. They are sold by set of 2 parts.
Specifications
Specifications
| Range of product | ComPacT NSX100...250, ComPacT NSX100...250 DC |
| Product or component type | Short rear connection |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPacT Compact NSX100 DC, ComPacT Compact NSX160 DC, ComPacT Compact NSX250 DC, ComPacT EasyPact CVS100, ComPacT EasyPact CVS160, ComPacT EasyPact CVS250, ComPacT ComPacT INS, ComPacT Compact INV |
| Poles description | 3P, 4P |
| [In] rated current | 250 A |
| Location of connection | Rear |
| Shape | Short |
| Quantity per set | Set of 2 |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 10.000 cm × 2.500 cm (L × W × H), 165.800 g |
| Package 2 | 12 BB1, 35.000 cm × 20.100 cm × 11.000 cm (L × W × H), 2.190 kg |
| Package 3 | 60 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.648 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429235: frequently asked questions
When can LV429235 be shipped?
LV429235 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429235 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429235 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429235, subject to availability and destination.
