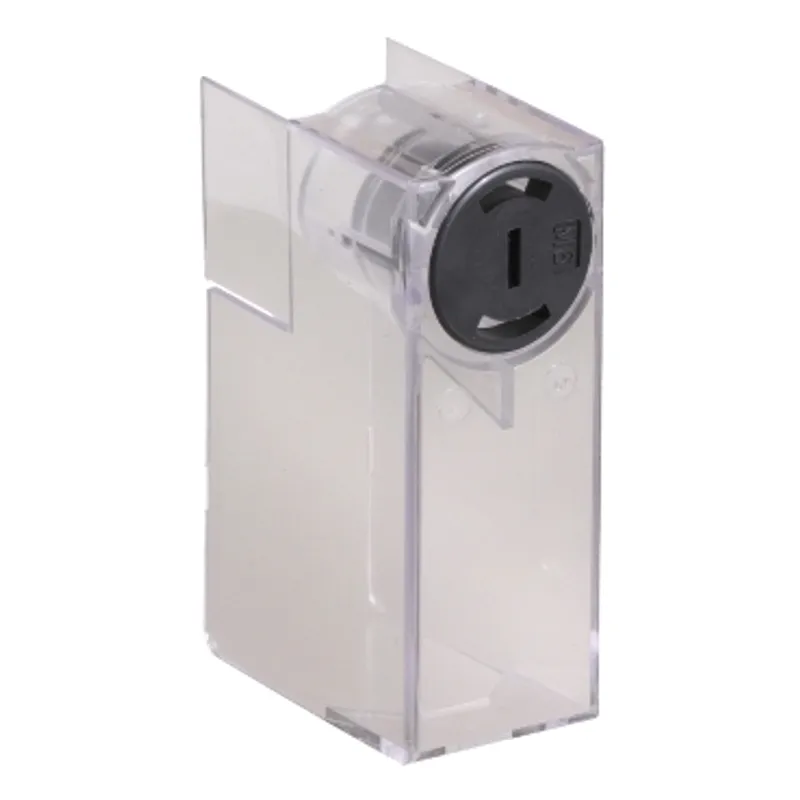

Schneider Electric LA9F703
TeSys F - terminal shroud for contactor or relay 2P/3P
- MPN
- LA9F703
- EAN
- 3389110120622
- Category
- TeSys F
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LA9F703?
TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F225, F265, F330, F400, F500 and CR1 F265, F400, F500, and thermal overload relays LR9 F75, F79, F81, F*75, F*79, F*81. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | LA9F |
| Product or component type | Terminal shroud |
| Accessory / separate part category | Protection accessory |
| Range compatibility | TeSys LR9F electronic thermal overload relay, TeSys LC1F contactor, TeSys LC2F reversing contactor, TeSys CR1F magnetic latching contactor, Altistart ATS22 soft starter |
| Product compatibility | LC1F225, F265, F330, F400, F500, LC1F4002, F5002, CR1F265, F400, F500, ATS22 C21, C25, C32, C41, C48, C59, LC2F225, F265, LR9F7575, F7579, F7581, LR9F75, F79, F81, LR9F7375, F7379, F7381 |
| Quantity per set | Set of 6 |
| Poles description | 1P |
| Mounting location | On power terminal |
| Net weight | 0.25 kg |
Packaging
| Package 1 | 1 PCE, 33.000 cm × 14.800 cm × 9.100 cm (L × W × H), 392.000 g |
| Package 2 | 39 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 28.483 kg |
