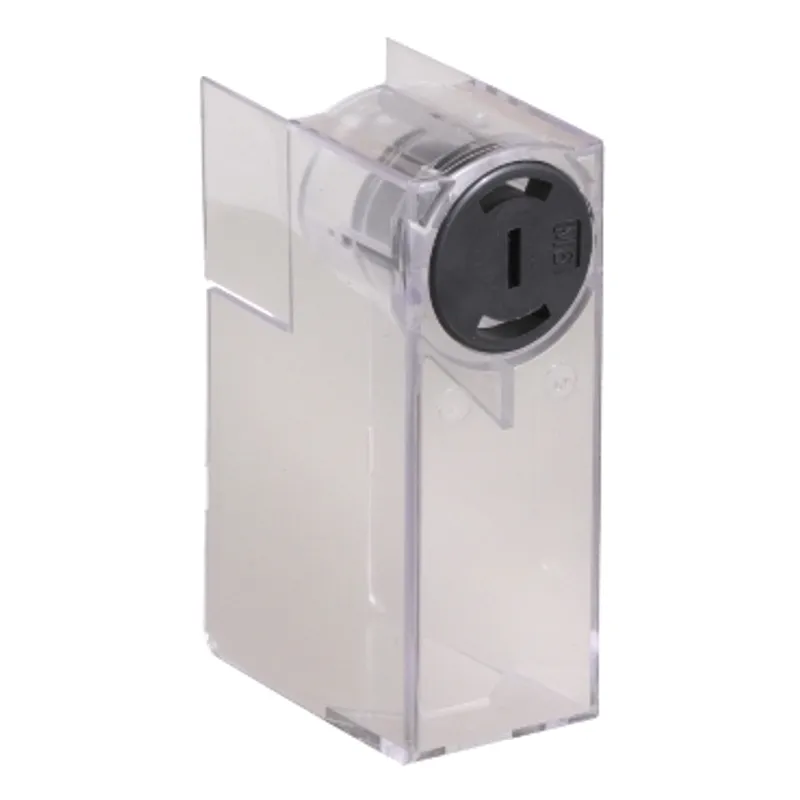

Schneider Electric LA9F702
TeSys F - terminal shroud for contactor or relay 3P
- MPN
- LA9F702
- EAN
- 3389110120615
- Category
- TeSys F
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LA9F702?
TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F150, F185 and CR1 F150, F185, and thermal overload relays LR9 F63, F67, F69, F*63, F*67, F*69. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | LA9F |
| Product or component type | Terminal shroud |
| Accessory / separate part category | Protection accessory |
| Range compatibility | TeSys LR9F electronic thermal overload relay, TeSys LC1F contactor, TeSys LC2F reversing contactor, TeSys CR1F magnetic latching contactor, Altistart ATS22 soft starter, Altistart ATS48 soft starter |
| Product compatibility | LR9F5363, F5367, F5369, LC1F150, F185, ATS22 C11, C14, C17, LC2F150, F185, LR9F5563, F5567, F5569, CR1F150, F185, ATS48 C14, C17, LR9F63, F67, F69 |
| Quantity per set | Set of 6 |
| Poles description | 1P |
| Mounting location | On power terminal |
| Net weight | 0.25 kg |
Packaging
| Package 1 | 1 PCE, 18.500 cm × 12.000 cm × 6.500 cm (L × W × H), 203.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.623 kg |
| Package 3 | 128 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 40.188 kg |
