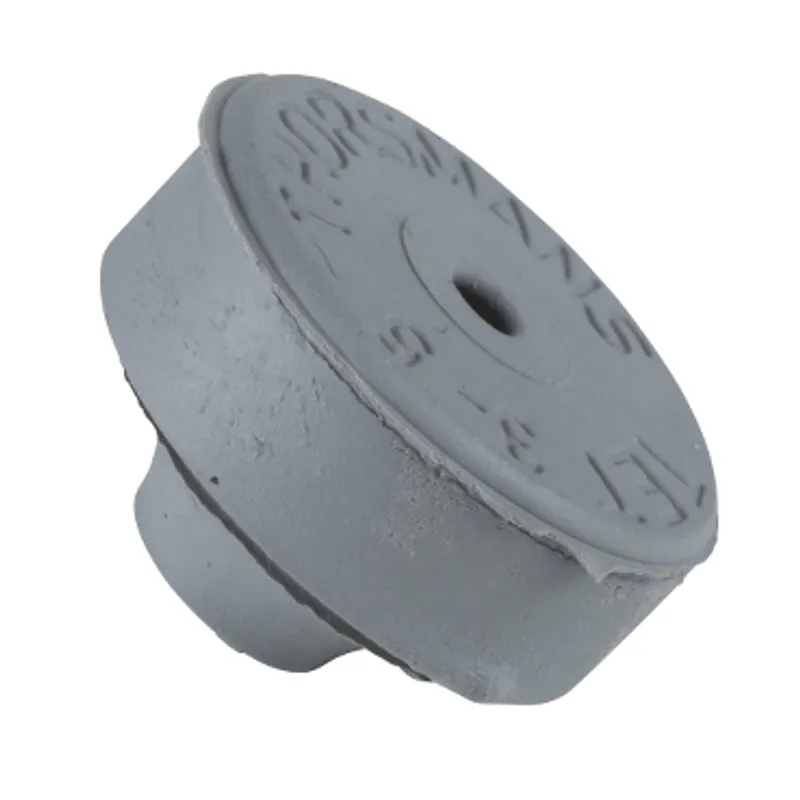

Schneider Electric IMT36181
Grommet, Thorsman TET, ISO M20, diameter 7 to 10, grey
- MPN
- IMT36181
- EAN
- 3606480163807
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original IMT36181 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric IMT36181?
TET grommets are available in two different materials, Ethylene/propylene (EPDM) rubber and Chloroprene (CR) rubber. Both materials are weather and temperature resistant and can be used both indoors and outdoors. These grommets are intended for completely dust and watertight sealing of cables, conduits and pipes, for example in cars, aeroplanes, ships, electrical and hydraulic equipment. This device is a grommet and is grey in color. The grommet is made of EPDM, making it resistant and durable. This device is sold in set of 50. The IP rating of this device is IP67 which is very high. This grommet is SVHC (substances of very high concern) free. Being environmentally friendly, this grommet is a green premium product. It is mercury free.
Specifications
Specifications
| product range | Thorsman TET |
| product type | Grommet |
| colour | Grey |
| quantity per package | Set of 50 |
| Material | Rubber |
| ISO thread | M20 |
| Cable outer diameter | 7…10 mm |
| Drilling diameter | 20.3 mm |
| Height | 22 mm |
| Width | 29 mm |
| Length | 29 mm |
| Main colour tint | Grey |
| Colour tint | Grey |
| IP-Class | IP67 |
Packaging
| Package 1 | 1 PCE, 2.500 cm × 2.500 cm × 2.000 cm (L × W × H), 5.000 g |
| Package 2 | 50 BB1, 5.000 cm × 14.000 cm × 17.000 cm (L × W × H), 295.000 g |
| Package 3 | 2000 CAR, 40.000 cm × 30.000 cm × 32.000 cm (L × W × H), 12.072 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
IMT36181: frequently asked questions
Can I still buy the IMT36181 now that it is discontinued?
Yes. Schneider Electric has discontinued the IMT36181, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can IMT36181 be shipped?
IMT36181 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IMT36181 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IMT36181 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IMT36181, subject to availability and destination.
