Schneider Electric IMT36180

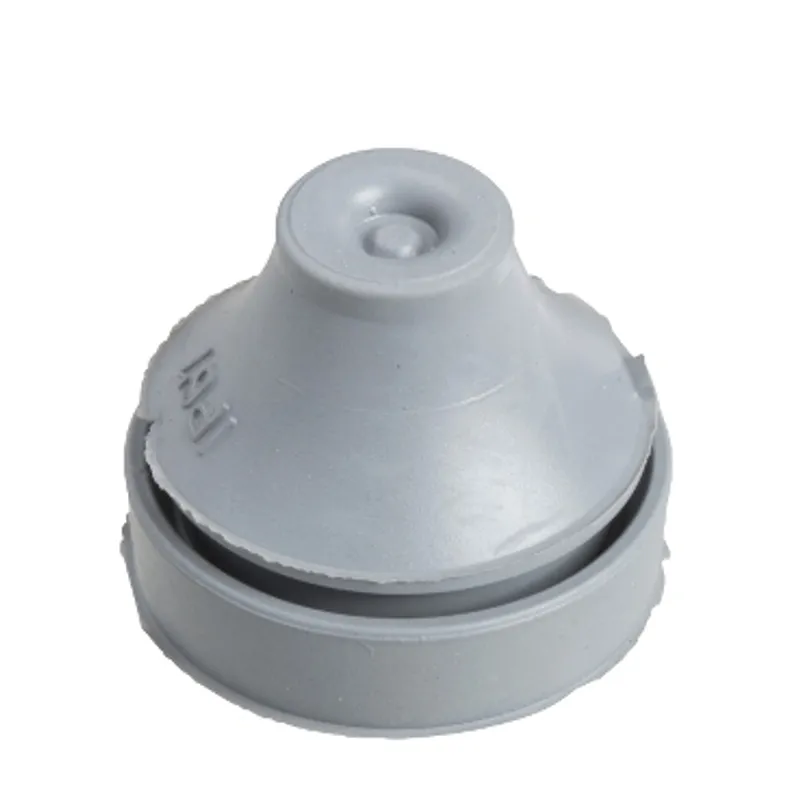

Grommet, Thorsman TET, ISO M16, diameter 5 to 7, grey
- MPN
- IMT36180
- EAN
- 3606480163791
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original IMT36180 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric IMT36180?
TET grommets are available in two different materials, Ethylene/propylene (EPDM) rubber and Chloroprene (CR) rubber. Both materials are weather and temperature resistant and can be used both indoors and outdoors. These grommets are intended for completely dust and watertight sealing of cables, conduits and pipes, for example in cars, aeroplanes, ships, electrical and hydraulic equipment. This device is a grommet and is grey in color. The grommet is made of EPDM, making it resistant and durable. This device is sold in set of 50. The IP rating of this device is IP67 which is very high. This grommet is SVHC (substances of very high concern) free. As a green premium product, this device is environmentally friendly. It is mercury free.
Specifications
Specifications
| product range | Thorsman TET |
| product type | Grommet |
| colour | Grey |
| quantity per package | Set of 50 |
| Material | Rubber |
| ISO thread | M16 |
| Cable outer diameter | 5…7 mm |
| Drilling diameter | 16 mm |
| Height | 20 mm |
| Width | 20 mm |
| Length | 25 mm |
| Main colour tint | Grey |
| Colour tint | Grey |
| IP-Class | IP67 |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 2.000 cm × 1.800 cm (L × W × H), 3.500 g |
| Package 2 | 3000 CAR, 31.000 cm × 32.000 cm × 40.000 cm (L × W × H), 10.970 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
IMT36180: frequently asked questions
Can I still buy the IMT36180 now that it is discontinued?
Yes. Schneider Electric has discontinued the IMT36180, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can IMT36180 be shipped?
IMT36180 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IMT36180 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IMT36180 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IMT36180, subject to availability and destination.
